Traffic Trace Info


DumpFile: 200008161359.dump
FileSize: 140.23MB
Id: 200008161359
StartTime: Wed Aug 16 13:59:00 2000
EndTime: Wed Aug 16 15:18:21 2000
TotalTime: 4761.11 seconds
TotalCapSize: 108.25MB CapLen: 76 bytes
# of packets: 2095989 (381.11MB)
AvgRate: 671.43Kbps stddev:231.00K

IP flow (unique src/dst pair) Information

# of flows: 66591 (avg. 31.48 pkts/flow)
Top 10 big flow size (bytes/total in %):
13.3% 1.9% 1.5% 1.3% 1.3% 1.1% 1.0% 0.8% 0.7% 0.7%

IP address Information

# of IPv4 addresses: 33469
Top 10 bandwidth usage (bytes/total in %):
14.4% 13.4% 8.5% 7.5% 4.9% 3.5% 3.1% 2.2% 2.2% 2.2%

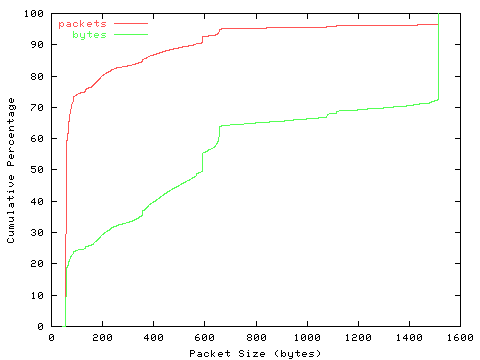

Packet Size Distribution (including MAC headers)

[packet size distribution]
detailed numbers
 [   32-   63]:    1292666
 [   64-  127]:     276218
 [  128-  255]:     161712
 [  256-  511]:     140306
 [  512- 1023]:     132831
 [ 1024- 2047]:      92256

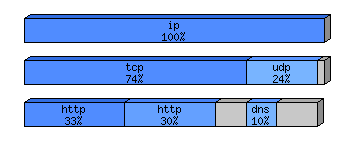

Protocol Breakdown

[protocol breakdown chart]

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2095989 (100.00%)        399619208 (100.00%)    190.66
 ip             2095958 (100.00%)        399617456 (100.00%)    190.66
  tcp           1663014 ( 79.34%)        296667499 ( 74.24%)    178.39
   http(s)       176593 (  8.43%)        133835254 ( 33.49%)    757.87
   http(c)      1189051 ( 56.73%)        121559439 ( 30.42%)    102.23
   squid           2442 (  0.12%)           917095 (  0.23%)    375.55
   smtp           31798 (  1.52%)          5678007 (  1.42%)    178.56
   nntp            2364 (  0.11%)           142543 (  0.04%)     60.30
   ftp            24076 (  1.15%)          6111259 (  1.53%)    253.83
   pop3            5412 (  0.26%)          1933264 (  0.48%)    357.22
   imap             168 (  0.01%)           184312 (  0.05%)   1097.10
   telnet          1398 (  0.07%)           178814 (  0.04%)    127.91
   ssh             2301 (  0.11%)           209412 (  0.05%)     91.01
   dns            10782 (  0.51%)           652446 (  0.16%)     60.51
   bgp             5326 (  0.25%)           359335 (  0.09%)     67.47
   napster       111344 (  5.31%)         12491125 (  3.13%)    112.18
   realaud           80 (  0.00%)             5946 (  0.00%)     74.33
   rtsp            1195 (  0.06%)           232186 (  0.06%)    194.30
   icecast            6 (  0.00%)             1270 (  0.00%)    211.67
   other          98678 (  4.71%)         12175792 (  3.05%)    123.39
  udp            398427 ( 19.01%)         94689590 ( 23.69%)    237.66
   dns           274879 ( 13.11%)         39910223 (  9.99%)    145.19
   rip             2008 (  0.10%)           500928 (  0.13%)    249.47
   realaud          855 (  0.04%)            51955 (  0.01%)     60.77
   other         120685 (  5.76%)         54226484 ( 13.57%)    449.32
  icmp            28304 (  1.35%)          5982798 (  1.50%)    211.38
  igmp              476 (  0.02%)            28560 (  0.01%)     60.00
  ospf             4830 (  0.23%)          1653868 (  0.41%)    342.42
  ip6               907 (  0.04%)           595141 (  0.15%)    656.16


tcpdump file: 200008161359.dump.gz (44.90 MB)
