Traffic Trace Info
DumpFile: 200108301400.dump
FileSize: 202.70MB
Id: 200108301400
StartTime: Thu Aug 30 14:00:00 2001
EndTime: Thu Aug 30 14:09:46 2001
TotalTime: 585.28 seconds
TotalCapSize: 157.10MB CapLen: 96 bytes
# of packets: 2988662 (1663.29MB)
AvgRate: 23.84Mbps stddev:2.34M
IP flow (unique src/dst pair) Information
# of flows: 175915 (avg. 16.99 pkts/flow)
Top 10 big flow size (bytes/total in %):
20.5% 6.5% 3.9% 3.0% 2.5% 1.9% 1.6% 1.4% 1.3% 1.3%
IP address Information
# of IPv4 addresses: 141236
Top 10 bandwidth usage (bytes/total in %):
20.6% 20.6% 7.1% 6.9% 6.9% 5.2% 4.3% 3.0% 3.0% 2.5%

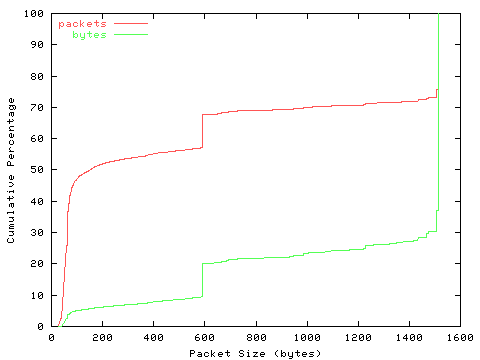

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200108301400.pktlen.png)
detailed numbers
[ 16- 31]: 32432
[ 32- 63]: 1061328
[ 64- 127]: 368517
[ 128- 255]: 122610
[ 256- 511]: 95930
[ 512- 1023]: 415536
[ 1024- 2047]: 892309

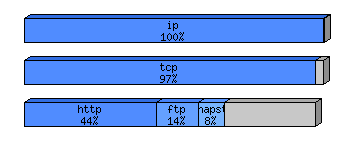

Protocol Breakdown
![[protocol breakdown chart]](200108301400.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 2988662 (100.00%) 1744082967 (100.00%) 583.57
ip 2953491 ( 98.82%) 1743035950 ( 99.94%) 590.16
tcp 2630258 ( 88.01%) 1696826392 ( 97.29%) 645.12
http(s) 660652 ( 22.11%) 767501925 ( 44.01%) 1161.73
http(c) 591875 ( 19.80%) 52751072 ( 3.02%) 89.13
squid 6562 ( 0.22%) 3155514 ( 0.18%) 480.88
smtp 94860 ( 3.17%) 38953839 ( 2.23%) 410.65
nntp 172 ( 0.01%) 13835 ( 0.00%) 80.44
ftp 433421 ( 14.50%) 247925327 ( 14.22%) 572.02
pop3 2852 ( 0.10%) 366083 ( 0.02%) 128.36
imap 28 ( 0.00%) 2269 ( 0.00%) 81.04
telnet 1210 ( 0.04%) 338312 ( 0.02%) 279.60
ssh 987 ( 0.03%) 156272 ( 0.01%) 158.33
dns 1059 ( 0.04%) 68689 ( 0.00%) 64.86
bgp 155 ( 0.01%) 33198 ( 0.00%) 214.18
napster 233071 ( 7.80%) 147404731 ( 8.45%) 632.45
realaud 22 ( 0.00%) 2178 ( 0.00%) 99.00
rtsp 14929 ( 0.50%) 9335958 ( 0.54%) 625.36
icecast 7315 ( 0.24%) 445319 ( 0.03%) 60.88
hotline 16676 ( 0.56%) 16279890 ( 0.93%) 976.25
other 563938 ( 18.87%) 412074020 ( 23.63%) 730.71
udp 202218 ( 6.77%) 38334428 ( 2.20%) 189.57
dns 127238 ( 4.26%) 16885331 ( 0.97%) 132.71
rip 111 ( 0.00%) 12266 ( 0.00%) 110.50
realaud 1421 ( 0.05%) 666772 ( 0.04%) 469.23
halflif 74 ( 0.00%) 4440 ( 0.00%) 60.00
quake 290 ( 0.01%) 39623 ( 0.00%) 136.63
other 71086 ( 2.38%) 20555794 ( 1.18%) 289.17
icmp 78275 ( 2.62%) 6377001 ( 0.37%) 81.47
ipsec 23 ( 0.00%) 3254 ( 0.00%) 141.48
ip6 171 ( 0.01%) 40871 ( 0.00%) 239.01
other 42546 ( 1.42%) 1454004 ( 0.08%) 34.17
frag 5691 ( 0.19%) 4552345 ( 0.26%) 799.92
tcpdump file: 200108301400.dump.gz (78.33 MB)
