Traffic Trace Info
DumpFile: -
Id: 200603030530
StartTime: Fri Mar 3 05:30:01 2006
EndTime: Fri Mar 3 05:45:00 2006
TotalTime: 899.42 seconds
TotalCapSize: 351.55MB CapLen: 96 bytes
# of packets: 6662864 (2771.45MB)
AvgRate: 25.85Mbps stddev:1.22M
IP flow (unique src/dst pair) Information
# of flows: 419977 (avg. 15.86 pkts/flow)
Top 10 big flow size (bytes/total in %):
6.7% 5.6% 3.3% 1.7% 1.6% 1.5% 0.7% 0.6% 0.6% 0.5%
IP address Information
# of IPv4 addresses: 276893
Top 10 bandwidth usage (bytes/total in %):
25.2% 14.4% 7.8% 6.8% 6.7% 5.8% 3.3% 3.3% 3.3% 2.7%

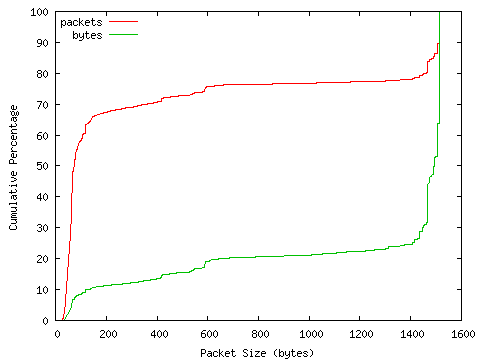

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200603030530.pktlen.png)
detailed numbers
[ 16- 31]: 67910
[ 32- 63]: 2221980
[ 64- 127]: 1958099
[ 128- 255]: 308626
[ 256- 511]: 294619
[ 512- 1023]: 269623
[ 1024- 2047]: 1542007

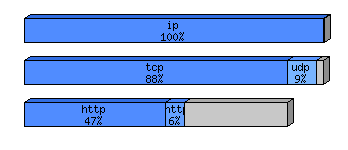

Protocol Breakdown
![[protocol breakdown chart]](200603030530.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 6662864 (100.00%) 2906076193 (100.00%) 436.16
ip 6527575 ( 97.97%) 2902007751 ( 99.86%) 444.58
tcp 5169583 ( 77.59%) 2554654145 ( 87.91%) 494.17
http(s) 1445321 ( 21.69%) 1375484288 ( 47.33%) 951.68
http(c) 1677741 ( 25.18%) 175462275 ( 6.04%) 104.58
squid 80087 ( 1.20%) 29954456 ( 1.03%) 374.02
smtp 219570 ( 3.30%) 37618078 ( 1.29%) 171.33
ftp 8942 ( 0.13%) 742526 ( 0.03%) 83.04
pop3 1620 ( 0.02%) 864899 ( 0.03%) 533.89
imap 1588 ( 0.02%) 1153256 ( 0.04%) 726.23
telnet 256 ( 0.00%) 21740 ( 0.00%) 84.92
ssh 905 ( 0.01%) 165473 ( 0.01%) 182.84
dns 8330 ( 0.13%) 623076 ( 0.02%) 74.80
bgp 158 ( 0.00%) 69637 ( 0.00%) 440.74
napster 503 ( 0.01%) 260899 ( 0.01%) 518.69
realaud 459 ( 0.01%) 614375 ( 0.02%) 1338.51
rtsp 9742 ( 0.15%) 645948 ( 0.02%) 66.31
icecast 3649 ( 0.05%) 228986 ( 0.01%) 62.75
hotline 8 ( 0.00%) 522 ( 0.00%) 65.25
other 1694815 ( 25.44%) 930195938 ( 32.01%) 548.85
udp 1040462 ( 15.62%) 273920671 ( 9.43%) 263.27
dns 462704 ( 6.94%) 90656963 ( 3.12%) 195.93
realaud 1522 ( 0.02%) 113104 ( 0.00%) 74.31
halflif 17 ( 0.00%) 2451 ( 0.00%) 144.18
starcra 4 ( 0.00%) 492 ( 0.00%) 123.00
everque 100 ( 0.00%) 14745 ( 0.00%) 147.45
unreal 7 ( 0.00%) 775 ( 0.00%) 110.71
quake 268 ( 0.00%) 55973 ( 0.00%) 208.85
cuseeme 2 ( 0.00%) 454 ( 0.00%) 227.00
other 567396 ( 8.52%) 182620400 ( 6.28%) 321.86
icmp 157055 ( 2.36%) 13068408 ( 0.45%) 83.21
ip6 230 ( 0.00%) 24832 ( 0.00%) 107.97
other 160245 ( 2.41%) 60339695 ( 2.08%) 376.55
frag 10246 ( 0.15%) 6427933 ( 0.22%) 627.36
tcpdump file: 200603030530.dump.gz (186.04 MB)
