Traffic Trace Info
DumpFile: 200106180900.dump
FileSize: 211.61MB
Id: 200106180900
StartTime: Mon Jun 18 09:00:00 2001
EndTime: Mon Jun 18 11:57:53 2001
TotalTime: 10672.17 seconds
TotalCapSize: 149.24MB CapLen: 96 bytes
# of packets: 2000000 (1238.33MB)
AvgRate: 973.37Kbps stddev:913.51K
IP flow (unique src/dst pair) Information
# of flows: 1201 (avg. 1665.28 pkts/flow)
Top 10 big flow size (bytes/total in %):
75.3% 10.2% 4.3% 4.0% 1.9% 0.9% 0.4% 0.2% 0.2% 0.2%
IP address Information
# of IPv6 addresses: 598
Top 10 bandwidth usage (bytes/total in %):
77.2% 77.2% 10.3% 10.2% 8.4% 4.4% 4.1% 1.0% 1.0% 0.5%

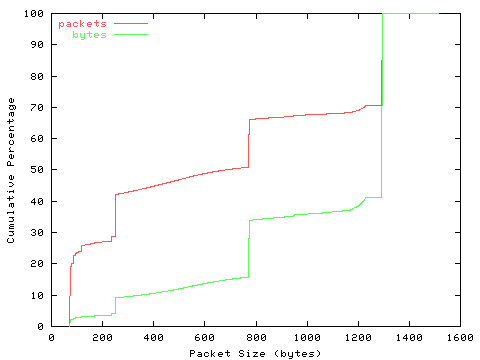

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200106180900.pktlen.png)
detailed numbers
[ 64- 127]: 519732
[ 128- 255]: 323907
[ 256- 511]: 98880
[ 512- 1023]: 411010
[ 1024- 2047]: 646471

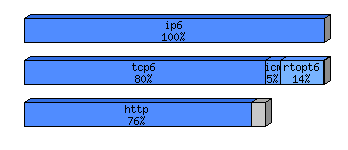

Protocol Breakdown
![[protocol breakdown chart]](200106180900.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 2000000 (100.00%) 1298481096 (100.00%) 649.24
ip6 2000000 (100.00%) 1298481096 (100.00%) 649.24
tcp6 1357068 ( 67.85%) 1044812706 ( 80.46%) 769.90
http(s) 896863 ( 44.84%) 983494692 ( 75.74%) 1096.59
http(c) 343145 ( 17.16%) 25780879 ( 1.99%) 75.13
squid 5 ( 0.00%) 390 ( 0.00%) 78.00
smtp 4208 ( 0.21%) 1349173 ( 0.10%) 320.62
ftp 865 ( 0.04%) 147174 ( 0.01%) 170.14
ssh 26631 ( 1.33%) 8930072 ( 0.69%) 335.33
bgp 32683 ( 1.63%) 3410172 ( 0.26%) 104.34
other 52668 ( 2.63%) 21700154 ( 1.67%) 412.02
udp6 4229 ( 0.21%) 652599 ( 0.05%) 154.32
dns 2962 ( 0.15%) 453025 ( 0.03%) 152.95
other 1267 ( 0.06%) 199574 ( 0.02%) 157.52
icmp6 189788 ( 9.49%) 67055586 ( 5.16%) 353.32
rtopt6 448519 ( 22.43%) 185884761 ( 14.32%) 414.44
pim6 356 ( 0.02%) 43432 ( 0.00%) 122.00
other6 40 ( 0.00%) 32012 ( 0.00%) 800.30
tcpdump file: 200106180900.dump.gz (22.55 MB)
