Traffic Trace Info

DumpFile: 200205190900.dump
FileSize: 213.81MB
Id: 200205190900
StartTime: Sun May 19 09:00:00 2002
EndTime: Sun May 19 19:17:18 2002
TotalTime: 37038.29 seconds
TotalCapSize: 164.32MB CapLen: 96 bytes
# of packets: 2000000 (1112.58MB)
AvgRate: 251.98Kbps stddev:396.59K

IP flow (unique src/dst pair) Information

# of flows: 2478 (avg. 807.10 pkts/flow)
Top 10 big flow size (bytes/total in %):
49.6% 20.8% 10.3% 8.4% 0.8% 0.6% 0.4% 0.4% 0.3% 0.2%

IP address Information

# of IPv6 addresses: 1060
Top 10 bandwidth usage (bytes/total in %):
70.4% 49.6% 20.8% 10.7% 10.7% 8.9% 8.7% 1.4% 1.3% 1.1%

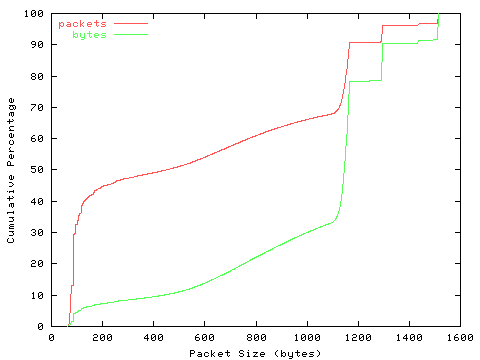

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:         19
 [   64-  127]:     801253
 [  128-  255]:     128713
 [  256-  511]:      98086
 [  512- 1023]:     303739
 [ 1024- 2047]:     668190

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)       1166624432 (100.00%)    583.31
 ip6            2000000 (100.00%)       1166624432 (100.00%)    583.31
  tcp6           691379 ( 34.57%)        291539527 ( 24.99%)    421.68
   http(s)         7434 (  0.37%)          5870456 (  0.50%)    789.68
   http(c)         4165 (  0.21%)           496609 (  0.04%)    119.23
   squid             69 (  0.00%)             5355 (  0.00%)     77.61
   smtp           13991 (  0.70%)          4218435 (  0.36%)    301.51
   nntp             605 (  0.03%)           626509 (  0.05%)   1035.55
   ftp           267101 ( 13.36%)        228034028 ( 19.55%)    853.74
   pop3             640 (  0.03%)           632057 (  0.05%)    987.59
   ssh            81992 (  4.10%)         10258415 (  0.88%)    125.11
   bgp           149627 (  7.48%)         14879360 (  1.28%)     99.44
   other         165755 (  8.29%)         26518303 (  2.27%)    159.98
  udp6            35729 (  1.79%)         14756873 (  1.26%)    413.02
   dns            26936 (  1.35%)          4939627 (  0.42%)    183.38
   other           8793 (  0.44%)          9817246 (  0.84%)   1116.48
  icmp6          357128 ( 17.86%)         33264015 (  2.85%)     93.14
  ospf6            3704 (  0.19%)           333360 (  0.03%)     90.00
  ipsec6              6 (  0.00%)              708 (  0.00%)    118.00
  rtopt6         903738 ( 45.19%)        821130444 ( 70.39%)    908.59
  pim6             1235 (  0.06%)            79040 (  0.01%)     64.00
  other6           7081 (  0.35%)          5520465 (  0.47%)    779.62

tcpdump file: 200205190900.dump.gz (30.42 MB)
