Traffic Trace Info

DumpFile: 200210070900.dump
FileSize: 200.10MB
Id: 200210070900
StartTime: Mon Oct 7 09:00:01 2002
EndTime: Mon Oct 7 13:17:21 2002
TotalTime: 15440.53 seconds
TotalCapSize: 156.49MB CapLen: 96 bytes
# of packets: 2000000 (1071.46MB)
AvgRate: 582.10Kbps stddev:502.23K

IP flow (unique src/dst pair) Information

# of flows: 3604 (avg. 554.94 pkts/flow)
Top 10 big flow size (bytes/total in %):
21.2% 16.5% 15.0% 12.0% 11.4% 5.9% 1.6% 1.6% 1.2% 1.1%

IP address Information

# of IPv6 addresses: 1277
Top 10 bandwidth usage (bytes/total in %):
33.2% 21.2% 18.0% 17.5% 17.3% 15.6% 12.0% 11.4% 11.4% 6.5%

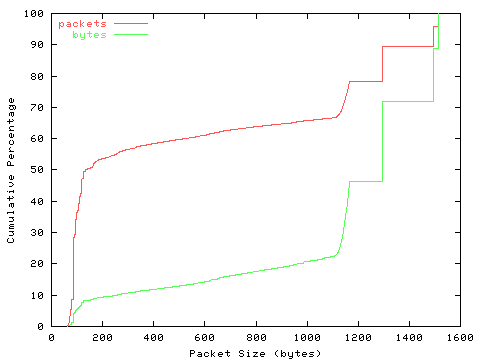

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:        109
 [   64-  127]:     988709
 [  128-  255]:     113490
 [  256-  511]:      95621
 [  512- 1023]:     121176
 [ 1024- 2047]:     680895

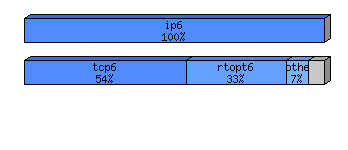

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)       1123504992 (100.00%)    561.75
 ip6            2000000 (100.00%)       1123504992 (100.00%)    561.75
  tcp6          1040106 ( 52.01%)        610430457 ( 54.33%)    586.89
   http(s)        13125 (  0.66%)         14012264 (  1.25%)   1067.60
   http(c)       130575 (  6.53%)         15506204 (  1.38%)    118.75
   squid             50 (  0.00%)             8849 (  0.00%)    176.98
   smtp           31323 (  1.57%)         22464199 (  2.00%)    717.18
   nntp             613 (  0.03%)            47039 (  0.00%)     76.74
   ftp            64222 (  3.21%)         27240215 (  2.42%)    424.16
   pop3            1450 (  0.07%)           649263 (  0.06%)    447.77
   imap            2220 (  0.11%)           433697 (  0.04%)    195.36
   ssh            74750 (  3.74%)         34445817 (  3.07%)    460.81
   dns              123 (  0.01%)            12688 (  0.00%)    103.15
   bgp           101816 (  5.09%)         10614079 (  0.94%)    104.25
   other         619839 ( 30.99%)        484996143 ( 43.17%)    782.46
  udp6            41213 (  2.06%)          6143463 (  0.55%)    149.07
   dns            26531 (  1.33%)          4263895 (  0.38%)    160.71
   other          14682 (  0.73%)          1879568 (  0.17%)    128.02
  icmp6          335807 ( 16.79%)         36308894 (  3.23%)    108.12
  ospf6            1540 (  0.08%)           138600 (  0.01%)     90.00
  ip6             56526 (  2.83%)         15375913 (  1.37%)    272.01
  ipsec6            379 (  0.02%)            46642 (  0.00%)    123.07
  rtopt6         407464 ( 20.37%)        372717470 ( 33.17%)    914.72
  other6         116965 (  5.85%)         82343553 (  7.33%)    704.00

tcpdump file: 200210070900.dump.gz (30.18 MB)
