Traffic Trace Info

DumpFile: 200303150900.dump
FileSize: 180.44MB
Id: 200303150900
StartTime: Sat Mar 15 09:00:02 2003
EndTime: Sat Mar 15 17:34:40 2003
TotalTime: 30878.01 seconds
TotalCapSize: 149.91MB CapLen: 96 bytes
# of packets: 2000000 (339.05MB)
AvgRate: 92.11Kbps stddev:940.11K

IP flow (unique src/dst pair) Information

# of flows: 3540 (avg. 564.97 pkts/flow)
Top 10 big flow size (bytes/total in %):
30.9% 14.7% 7.3% 5.2% 2.8% 2.5% 1.3% 1.2% 0.8% 0.7%

IP address Information

# of IPv6 addresses: 1539
Top 10 bandwidth usage (bytes/total in %):
30.9% 30.9% 14.8% 14.7% 7.3% 7.3% 6.5% 6.2% 5.2% 3.5%

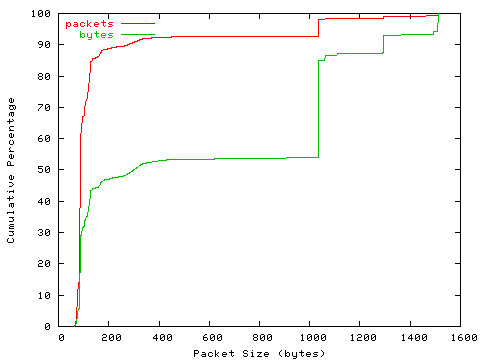

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:          2
 [   64-  127]:    1688903
 [  128-  255]:     102136
 [  256-  511]:      59645
 [  512- 1023]:       3289
 [ 1024- 2047]:     146025

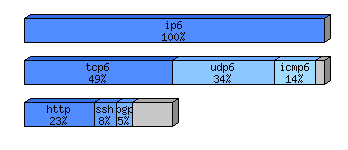

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)        355521292 (100.00%)    177.76
 ip6            2000000 (100.00%)        355521292 (100.00%)    177.76
  tcp6          1333416 ( 66.67%)        175647946 ( 49.41%)    131.73
   http(s)         8154 (  0.41%)          6982893 (  1.96%)    856.38
   http(c)       802443 ( 40.12%)         83247135 ( 23.42%)    103.74
   squid            109 (  0.01%)            12585 (  0.00%)    115.46
   smtp            9586 (  0.48%)          2211949 (  0.62%)    230.75
   nntp              60 (  0.00%)             5048 (  0.00%)     84.13
   ftp            28492 (  1.42%)          5364659 (  1.51%)    188.29
   pop3             480 (  0.02%)            66278 (  0.02%)    138.08
   imap             295 (  0.01%)            27605 (  0.01%)     93.58
   ssh           199748 (  9.99%)         26692770 (  7.51%)    133.63
   dns               68 (  0.00%)             6308 (  0.00%)     92.76
   bgp           175067 (  8.75%)         18576420 (  5.23%)    106.11
   rtsp            8580 (  0.43%)         12602540 (  3.54%)   1468.83
   other         100334 (  5.02%)         19851756 (  5.58%)    197.86
  udp6           198742 (  9.94%)        120965728 ( 34.02%)    608.66
   dns            88496 (  4.42%)         10622675 (  2.99%)    120.04
   other         110246 (  5.51%)        110343053 ( 31.04%)   1000.88
  icmp6          450734 ( 22.54%)         49349128 ( 13.88%)    109.49
  ospf6            3085 (  0.15%)           277650 (  0.08%)     90.00
  ip4                 2 (  0.00%)              468 (  0.00%)    234.00
  ip6                 6 (  0.00%)             1044 (  0.00%)    174.00
  ipsec6              1 (  0.00%)              118 (  0.00%)    118.00
  pim6             2059 (  0.10%)           220334 (  0.06%)    107.01
  other6          11955 (  0.60%)          9058876 (  2.55%)    757.75

tcpdump file: 200303150900.dump.gz (34.60 MB)
