Traffic Trace Info

DumpFile: 200303190900.dump
FileSize: 170.47MB
Id: 200303190900
StartTime: Wed Mar 19 09:00:01 2003
EndTime: Wed Mar 19 17:11:13 2003
TotalTime: 29471.46 seconds
TotalCapSize: 139.95MB CapLen: 96 bytes
# of packets: 2000000 (655.74MB)
AvgRate: 186.65Kbps stddev:2309.97K

IP flow (unique src/dst pair) Information

# of flows: 4613 (avg. 433.56 pkts/flow)
Top 10 big flow size (bytes/total in %):
38.3% 13.7% 12.3% 3.6% 2.8% 2.7% 2.7% 1.5% 0.9% 0.8%

IP address Information

# of IPv6 addresses: 1809
Top 10 bandwidth usage (bytes/total in %):
38.3% 38.3% 28.0% 13.7% 12.3% 3.6% 3.6% 3.2% 3.2% 2.9%

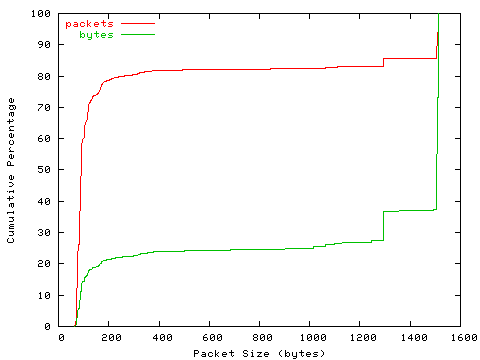

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:         36
 [   64-  127]:    1434436
 [  128-  255]:     165228
 [  256-  511]:      39762
 [  512- 1023]:      11878
 [ 1024- 2047]:     348660

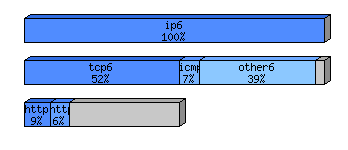

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)        687596750 (100.00%)    343.80
 ip6            2000000 (100.00%)        687596750 (100.00%)    343.80
  tcp6          1121378 ( 56.07%)        356089654 ( 51.79%)    317.55
   http(s)        61416 (  3.07%)         60515220 (  8.80%)    985.33
   http(c)       464662 ( 23.23%)         43412672 (  6.31%)     93.43
   squid             29 (  0.00%)             3618 (  0.00%)    124.76
   smtp           12040 (  0.60%)          2611681 (  0.38%)    216.92
   nntp             243 (  0.01%)            20162 (  0.00%)     82.97
   ftp            69337 (  3.47%)         11793891 (  1.72%)    170.10
   pop3            1990 (  0.10%)           180703 (  0.03%)     90.81
   telnet             3 (  0.00%)              234 (  0.00%)     78.00
   ssh            58255 (  2.91%)         11477019 (  1.67%)    197.01
   dns               88 (  0.00%)             8136 (  0.00%)     92.45
   bgp           170692 (  8.53%)         18546483 (  2.70%)    108.65
   other         282623 ( 14.13%)        207519835 ( 30.18%)    734.26
  udp6           117840 (  5.89%)         16690461 (  2.43%)    141.64
   dns           113609 (  5.68%)         16349744 (  2.38%)    143.91
   other           4231 (  0.21%)           340717 (  0.05%)     80.53
  icmp6          405953 ( 20.30%)         45959972 (  6.68%)    113.22
  ospf6            2944 (  0.15%)           264960 (  0.04%)     90.00
  ip6              4061 (  0.20%)           760301 (  0.11%)    187.22
  ipsec6           3510 (  0.18%)           458552 (  0.07%)    130.64
  pim6             1966 (  0.10%)           210404 (  0.03%)    107.02
  other6         342348 ( 17.12%)        267162446 ( 38.85%)    780.38

tcpdump file: 200303190900.dump.gz (30.69 MB)
