Traffic Trace Info

DumpFile: 200304270900.dump
FileSize: 627.27MB
Id: 200304270900
StartTime: Sun Apr 27 09:00:01 2003
EndTime: Sun Apr 27 15:59:36 2003
TotalTime: 25175.11 seconds
TotalCapSize: 160.63MB CapLen: 96 bytes
# of packets: 2000000 (1028.93MB)
AvgRate: 342.74Kbps stddev:581.27K

IP flow (unique src/dst pair) Information

# of flows: 4021 (avg. 497.39 pkts/flow)
Top 10 big flow size (bytes/total in %):
20.0% 16.6% 7.2% 6.9% 6.2% 4.6% 4.2% 4.2% 4.2% 3.6%

IP address Information

# of IPv6 addresses: 1545
Top 10 bandwidth usage (bytes/total in %):
28.4% 23.7% 20.8% 20.8% 20.8% 16.3% 10.6% 8.3% 6.5% 6.5%

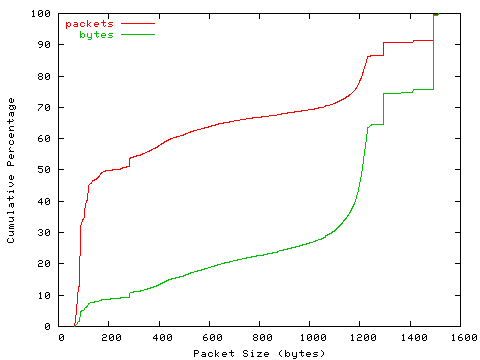

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:        364
 [   64-  127]:     911748
 [  128-  255]:     101986
 [  256-  511]:     220328
 [  512- 1023]:     157701
 [ 1024- 2047]:     607873

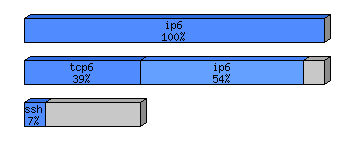

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)       1078916310 (100.00%)    539.46
 ip6            2000000 (100.00%)       1078916310 (100.00%)    539.46
  tcp6           739985 ( 37.00%)        419918056 ( 38.92%)    567.47
   http(s)         5341 (  0.27%)          5303409 (  0.49%)    992.96
   http(c)        11960 (  0.60%)          1437327 (  0.13%)    120.18
   smtp            7624 (  0.38%)          1408480 (  0.13%)    184.74
   nntp              10 (  0.00%)              740 (  0.00%)     74.00
   ftp            37222 (  1.86%)         19111712 (  1.77%)    513.45
   imap            3251 (  0.16%)           293601 (  0.03%)     90.31
   telnet             4 (  0.00%)              376 (  0.00%)     94.00
   ssh           120302 (  6.02%)         76480443 (  7.09%)    635.74
   dns               27 (  0.00%)             3530 (  0.00%)    130.74
   bgp           120769 (  6.04%)         12621504 (  1.17%)    104.51
   rtsp           26396 (  1.32%)         39058501 (  3.62%)   1479.71
   other         407079 ( 20.35%)        264198433 ( 24.49%)    649.01
  udp6           127936 (  6.40%)         25450377 (  2.36%)    198.93
   dns           117112 (  5.86%)         14126087 (  1.31%)    120.62
   other          10824 (  0.54%)         11324290 (  1.05%)   1046.22
  icmp6          423027 ( 21.15%)         46280211 (  4.29%)    109.40
  ip6            706664 ( 35.33%)        586187329 ( 54.33%)    829.51
  pim6             1679 (  0.08%)           179674 (  0.02%)    107.01
  other6            709 (  0.04%)           900663 (  0.08%)   1270.33

tcpdump file: 200304270900.dump.gz (41.39 MB)
