Traffic Trace Info
DumpFile: 200305110900.dump
FileSize: 176.06MB
Id: 200305110900
StartTime: Sun May 11 09:00:01 2003
EndTime: Sun May 11 17:32:35 2003
TotalTime: 30753.37 seconds
TotalCapSize: 145.54MB CapLen: 96 bytes
# of packets: 2000000 (679.00MB)
AvgRate: 185.21Kbps stddev:608.48K
IP flow (unique src/dst pair) Information
# of flows: 3949 (avg. 506.46 pkts/flow)
Top 10 big flow size (bytes/total in %):
39.4% 30.0% 2.4% 2.2% 1.8% 1.6% 1.3% 1.1% 0.8% 0.5%
IP address Information
# of IPv6 addresses: 1510
Top 10 bandwidth usage (bytes/total in %):
41.2% 41.2% 31.5% 31.1% 4.4% 2.6% 2.6% 2.3% 2.3% 1.7%

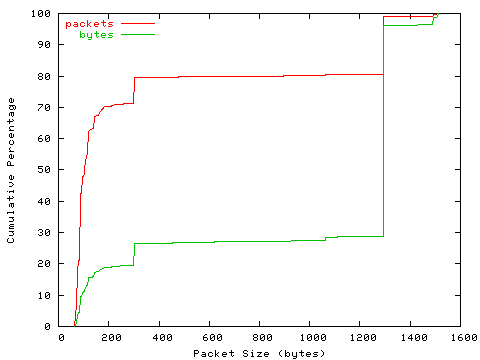

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200305110900.pktlen.png)
detailed numbers
[ 32- 63]: 507
[ 64- 127]: 1256717
[ 128- 255]: 164346
[ 256- 511]: 173093
[ 512- 1023]: 7351
[ 1024- 2047]: 397986

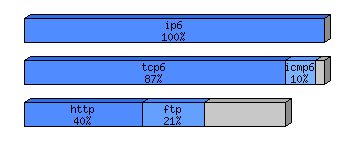

Protocol Breakdown
![[protocol breakdown chart]](200305110900.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 2000000 (100.00%) 711980425 (100.00%) 355.99
ip6 2000000 (100.00%) 711980425 (100.00%) 355.99
tcp6 1206750 ( 60.34%) 619585004 ( 87.02%) 513.43
http(s) 187789 ( 9.39%) 30939325 ( 4.35%) 164.76
http(c) 353135 ( 17.66%) 281600928 ( 39.55%) 797.43
squid 12 ( 0.00%) 1116 ( 0.00%) 93.00
smtp 7267 ( 0.36%) 1830334 ( 0.26%) 251.87
nntp 94 ( 0.00%) 7896 ( 0.00%) 84.00
ftp 185204 ( 9.26%) 146364203 ( 20.56%) 790.29
pop3 10 ( 0.00%) 876 ( 0.00%) 87.60
imap 396 ( 0.02%) 35783 ( 0.01%) 90.36
ssh 31701 ( 1.59%) 5192020 ( 0.73%) 163.78
dns 44 ( 0.00%) 4136 ( 0.00%) 94.00
bgp 157194 ( 7.86%) 16617670 ( 2.33%) 105.71
icecast 4 ( 0.00%) 336 ( 0.00%) 84.00
other 283900 ( 14.19%) 136990381 ( 19.24%) 482.53
udp6 170358 ( 8.52%) 20049770 ( 2.82%) 117.69
dns 166531 ( 8.33%) 19626486 ( 2.76%) 117.85
other 3827 ( 0.19%) 423284 ( 0.06%) 110.60
icmp6 620219 ( 31.01%) 71519527 ( 10.05%) 115.31
pim6 2052 ( 0.10%) 219606 ( 0.03%) 107.02
other6 621 ( 0.03%) 606518 ( 0.09%) 976.68
tcpdump file: 200305110900.dump.gz (33.06 MB)
