Traffic Trace Info


DumpFile: 200305130900.dump
FileSize: 181.30MB
Id: 200305130900
StartTime: Tue May 13 09:00:01 2003
EndTime: Tue May 13 12:50:57 2003
TotalTime: 13855.85 seconds
TotalCapSize: 150.76MB CapLen: 96 bytes
# of packets: 2000000 (1190.24MB)
AvgRate: 720.60Kbps stddev:990.89K

IP flow (unique src/dst pair) Information

# of flows: 4370 (avg. 457.67 pkts/flow)
Top 10 big flow size (bytes/total in %):
57.7% 17.5% 10.7% 1.1% 0.9% 0.8% 0.7% 0.7% 0.4% 0.4%

IP address Information

# of IPv6 addresses: 1827
Top 10 bandwidth usage (bytes/total in %):
57.7% 57.7% 18.3% 18.3% 10.7% 10.7% 1.8% 1.3% 1.1% 1.1%

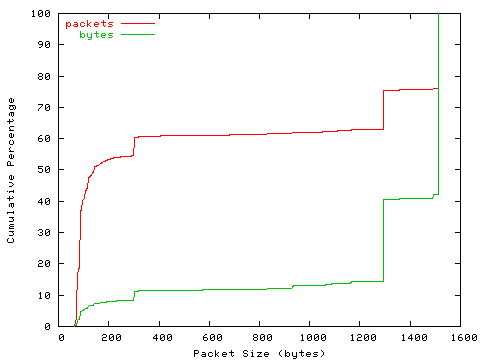

Packet Size Distribution (including MAC headers)

[packet size distribution]
detailed numbers
 [   32-   63]:        181
 [   64-  127]:     961449
 [  128-  255]:     122197
 [  256-  511]:     134415
 [  512- 1023]:      23501
 [ 1024- 2047]:     758257

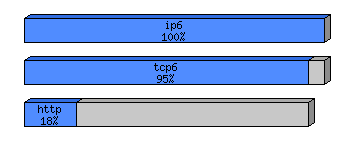

Protocol Breakdown

[protocol breakdown chart]

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)       1248057354 (100.00%)    624.03
 ip6            2000000 (100.00%)       1248057354 (100.00%)    624.03
  tcp6          1524228 ( 76.21%)       1183099676 ( 94.80%)    776.20
   http(s)       140093 (  7.00%)         14419337 (  1.16%)    102.93
   http(c)       269138 ( 13.46%)        219394178 ( 17.58%)    815.17
   squid             91 (  0.00%)             7817 (  0.00%)     85.90
   smtp            9707 (  0.49%)          2036079 (  0.16%)    209.75
   nntp              18 (  0.00%)             1512 (  0.00%)     84.00
   ftp            57417 (  2.87%)         27813052 (  2.23%)    484.40
   telnet           364 (  0.02%)            30816 (  0.00%)     84.66
   ssh            75610 (  3.78%)         17371060 (  1.39%)    229.75
   dns               22 (  0.00%)             2068 (  0.00%)     94.00
   bgp            83518 (  4.18%)          9423891 (  0.76%)    112.84
   other         888250 ( 44.41%)        892599866 ( 71.52%)   1004.90
  udp6           160225 (  8.01%)         15706657 (  1.26%)     98.03
   dns            79598 (  3.98%)          9830316 (  0.79%)    123.50
   other          80627 (  4.03%)          5876341 (  0.47%)     72.88
  icmp6          308510 ( 15.43%)         42466471 (  3.40%)    137.65
  pim6              924 (  0.05%)            98868 (  0.01%)    107.00
  other6           6113 (  0.31%)          6685682 (  0.54%)   1093.68


tcpdump file: 200305130900.dump.gz (32.20 MB)
