Traffic Trace Info


DumpFile: 200306290900.dump
FileSize: 183.76MB
Id: 200306290900
StartTime: Sun Jun 29 09:00:01 2003
EndTime: Sun Jun 29 15:50:25 2003
TotalTime: 24623.98 seconds
TotalCapSize: 153.14MB CapLen: 96 bytes
# of packets: 2000000 (1508.66MB)
AvgRate: 513.90Kbps stddev:1456.70K

IP flow (unique src/dst pair) Information

# of flows: 4096 (avg. 488.28 pkts/flow)
Top 10 big flow size (bytes/total in %):
56.9% 27.8% 5.9% 1.1% 1.1% 0.5% 0.4% 0.3% 0.2% 0.1%

IP address Information

# of IPv6 addresses: 1867
Top 10 bandwidth usage (bytes/total in %):
56.9% 56.9% 27.8% 27.8% 5.9% 5.9% 1.4% 1.2% 1.1% 1.1%

Packet Size Distribution (including MAC headers)

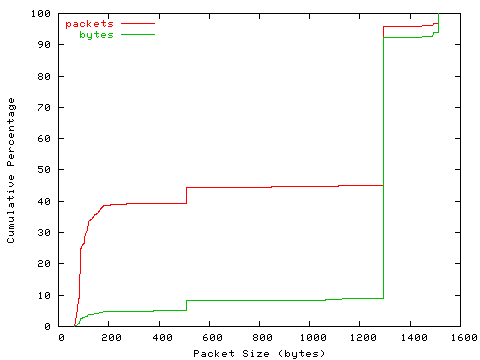

[packet size distribution]
detailed numbers
 [   32-   63]:        272
 [   64-  127]:     679748
 [  128-  255]:     101556
 [  256-  511]:     107221
 [  512- 1023]:       3433
 [ 1024- 2047]:    1107770


Protocol Breakdown

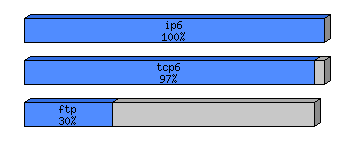

[protocol breakdown chart]

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)       1581940086 (100.00%)    790.97
 ip6            2000000 (100.00%)       1581940086 (100.00%)    790.97
  tcp6          1577196 ( 78.86%)       1532304286 ( 96.86%)    971.54
   http(s)         2012 (  0.10%)          1905191 (  0.12%)    946.91
   http(c)         9226 (  0.46%)          1072188 (  0.07%)    116.21
   squid            133 (  0.01%)            12690 (  0.00%)     95.41
   smtp            7043 (  0.35%)          1766149 (  0.11%)    250.77
   nntp              25 (  0.00%)             2110 (  0.00%)     84.40
   ftp           468244 ( 23.41%)        468621957 ( 29.62%)   1000.81
   ssh            53217 (  2.66%)         12651255 (  0.80%)    237.73
   dns               76 (  0.00%)             7583 (  0.00%)     99.78
   bgp           129791 (  6.49%)         13795574 (  0.87%)    106.29
   other         907429 ( 45.37%)       1032469589 ( 65.27%)   1137.80
  udp6            45763 (  2.29%)          5653763 (  0.36%)    123.54
   dns            33009 (  1.65%)          4613193 (  0.29%)    139.76
   other          12754 (  0.64%)          1040570 (  0.07%)     81.59
  icmp6          375224 ( 18.76%)         43582233 (  2.75%)    116.15
  pim6             1643 (  0.08%)           175822 (  0.01%)    107.01
  other6            174 (  0.01%)           223982 (  0.01%)   1287.25


tcpdump file: 200306290900.dump.gz (31.39 MB)
