Traffic Trace Info
DumpFile: 200309150900.dump
FileSize: 178.52MB
Id: 200309150900
StartTime: Mon Sep 15 09:00:01 2003
EndTime: Mon Sep 15 11:37:49 2003
TotalTime: 9468.79 seconds
TotalCapSize: 148.00MB CapLen: 96 bytes
# of packets: 2000000 (235.44MB)
AvgRate: 208.60Kbps stddev:144.26K
IP flow (unique src/dst pair) Information
# of flows: 2288 (avg. 874.13 pkts/flow)
Top 10 big flow size (bytes/total in %):
35.7% 31.2% 10.3% 2.3% 0.9% 0.7% 0.7% 0.6% 0.6% 0.6%
IP address Information
# of IPv6 addresses: 1361
Top 10 bandwidth usage (bytes/total in %):
35.7% 35.7% 32.0% 31.2% 10.3% 10.3% 9.1% 3.2% 3.2% 2.8%

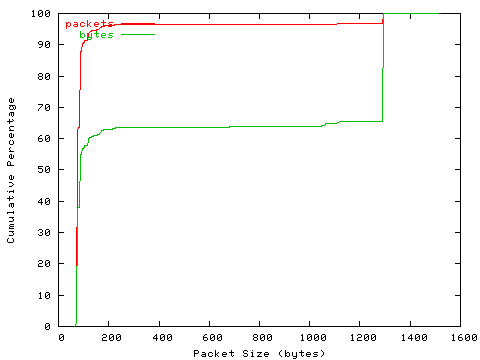

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200309150900.pktlen.png)
detailed numbers
[ 32- 63]: 101
[ 64- 127]: 1882924
[ 128- 255]: 45747
[ 256- 511]: 1125
[ 512- 1023]: 784
[ 1024- 2047]: 69319

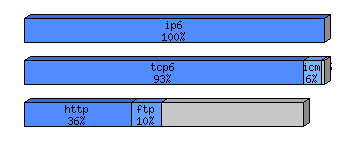

Protocol Breakdown
![[protocol breakdown chart]](200309150900.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 2000000 (100.00%) 246881156 (100.00%) 123.44
ip6 2000000 (100.00%) 246881156 (100.00%) 123.44
tcp6 1851576 ( 92.58%) 230234737 ( 93.26%) 124.35
http(s) 1797 ( 0.09%) 1582034 ( 0.64%) 880.38
http(c) 1190262 ( 59.51%) 88110965 ( 35.69%) 74.03
squid 47 ( 0.00%) 4035 ( 0.00%) 85.85
smtp 1932 ( 0.10%) 510359 ( 0.21%) 264.16
nntp 201 ( 0.01%) 36554 ( 0.01%) 181.86
ftp 295294 ( 14.76%) 25410370 ( 10.29%) 86.05
ssh 5373 ( 0.27%) 485440 ( 0.20%) 90.35
bgp 54079 ( 2.70%) 5889062 ( 2.39%) 108.90
other 302591 ( 15.13%) 108205918 ( 43.83%) 357.60
udp6 11128 ( 0.56%) 1499435 ( 0.61%) 134.74
dns 7501 ( 0.38%) 1163325 ( 0.47%) 155.09
other 3627 ( 0.18%) 336110 ( 0.14%) 92.67
icmp6 135560 ( 6.78%) 14619330 ( 5.92%) 107.84
ip6 988 ( 0.05%) 396312 ( 0.16%) 401.13
pim6 632 ( 0.03%) 67624 ( 0.03%) 107.00
other6 116 ( 0.01%) 63718 ( 0.03%) 549.29
tcpdump file: 200309150900.dump.gz (28.01 MB)
