Traffic Trace Info
DumpFile: 200311120900.dump
FileSize: 163.15MB
Id: 200311120900
StartTime: Wed Nov 12 09:00:01 2003
EndTime: Wed Nov 12 13:03:03 2003
TotalTime: 14582.69 seconds
TotalCapSize: 132.63MB CapLen: 96 bytes
# of packets: 2000000 (696.76MB)
AvgRate: 400.82Kbps stddev:190.03K
IP flow (unique src/dst pair) Information
# of flows: 6052 (avg. 330.47 pkts/flow)
Top 10 big flow size (bytes/total in %):
70.6% 6.1% 6.1% 2.7% 1.3% 0.6% 0.6% 0.4% 0.4% 0.3%
IP address Information
# of IPv6 addresses: 2862
Top 10 bandwidth usage (bytes/total in %):
73.3% 73.3% 13.1% 12.3% 1.8% 1.4% 1.4% 1.2% 1.1% 0.7%

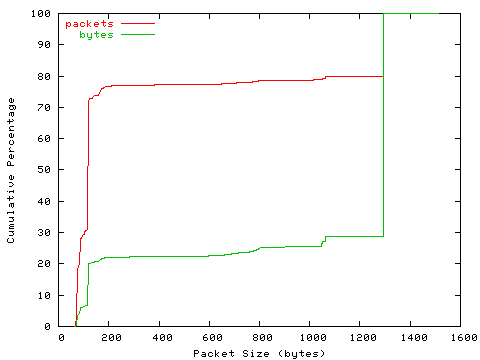

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200311120900.pktlen.png)
detailed numbers
[ 32- 63]: 147
[ 64- 127]: 1455100
[ 128- 255]: 84517
[ 256- 511]: 4539
[ 512- 1023]: 31460
[ 1024- 2047]: 424237

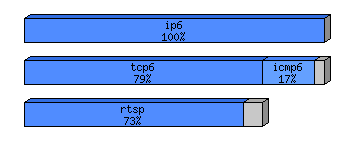

Protocol Breakdown
![[protocol breakdown chart]](200311120900.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 2000000 (100.00%) 730603690 (100.00%) 365.30
ip6 2000000 (100.00%) 730603690 (100.00%) 365.30
tcp6 885729 ( 44.29%) 580684425 ( 79.48%) 655.60
http(s) 9636 ( 0.48%) 11259353 ( 1.54%) 1168.47
http(c) 9606 ( 0.48%) 1035572 ( 0.14%) 107.80
squid 44 ( 0.00%) 4762 ( 0.00%) 108.23
smtp 5442 ( 0.27%) 1385489 ( 0.19%) 254.59
nntp 1989 ( 0.10%) 2251366 ( 0.31%) 1131.91
ftp 657 ( 0.03%) 126768 ( 0.02%) 192.95
pop3 134 ( 0.01%) 12160 ( 0.00%) 90.75
ssh 10089 ( 0.50%) 2754721 ( 0.38%) 273.04
bgp 68330 ( 3.42%) 7147070 ( 0.98%) 104.60
rtsp 672760 ( 33.64%) 535715454 ( 73.33%) 796.30
other 107042 ( 5.35%) 18991710 ( 2.60%) 177.42
udp6 79760 ( 3.99%) 20002515 ( 2.74%) 250.78
dns 28695 ( 1.43%) 4520389 ( 0.62%) 157.53
other 51065 ( 2.55%) 15482126 ( 2.12%) 303.18
icmp6 1030345 ( 51.52%) 127628756 ( 17.47%) 123.87
ip6 1731 ( 0.09%) 295086 ( 0.04%) 170.47
pim6 973 ( 0.05%) 104132 ( 0.01%) 107.02
other6 1462 ( 0.07%) 1888776 ( 0.26%) 1291.91
tcpdump file: 200311120900.dump.gz (27.27 MB)
