Traffic Trace Info
DumpFile: 200312070900.dump
FileSize: 172.11MB
Id: 200312070900
StartTime: Sun Dec 7 09:00:00 2003
EndTime: Sun Dec 7 14:18:41 2003
TotalTime: 19121.00 seconds
TotalCapSize: 141.59MB CapLen: 96 bytes
# of packets: 2000000 (961.59MB)
AvgRate: 421.86Kbps stddev:103.08K
IP flow (unique src/dst pair) Information
# of flows: 5856 (avg. 341.53 pkts/flow)
Top 10 big flow size (bytes/total in %):
79.5% 2.8% 2.2% 1.2% 0.7% 0.6% 0.4% 0.4% 0.4% 0.3%
IP address Information
# of IPv6 addresses: 2881
Top 10 bandwidth usage (bytes/total in %):
84.2% 82.4% 2.5% 2.2% 2.2% 2.0% 1.9% 1.2% 1.0% 0.6%

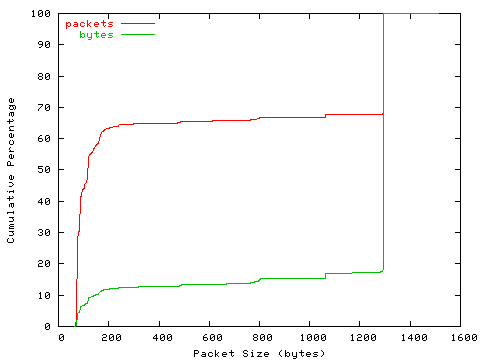

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200312070900.pktlen.png)
detailed numbers
[ 32- 63]: 195
[ 64- 127]: 1101457
[ 128- 255]: 189184
[ 256- 511]: 20087
[ 512- 1023]: 26357
[ 1024- 2047]: 662720

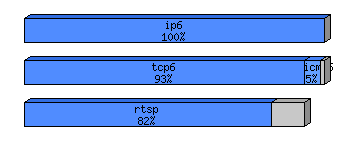

Protocol Breakdown
![[protocol breakdown chart]](200312070900.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 2000000 (100.00%) 1008296445 (100.00%) 504.15
ip6 2000000 (100.00%) 1008296445 (100.00%) 504.15
tcp6 1560904 ( 78.05%) 941402266 ( 93.37%) 603.11
http(s) 32301 ( 1.62%) 23076042 ( 2.29%) 714.41
http(c) 29011 ( 1.45%) 7533909 ( 0.75%) 259.69
squid 39 ( 0.00%) 5978 ( 0.00%) 153.28
smtp 4040 ( 0.20%) 751082 ( 0.07%) 185.91
nntp 1989 ( 0.10%) 235302 ( 0.02%) 118.30
ftp 785 ( 0.04%) 86131 ( 0.01%) 109.72
pop3 492 ( 0.02%) 429650 ( 0.04%) 873.27
ssh 15327 ( 0.77%) 4204707 ( 0.42%) 274.33
bgp 98118 ( 4.91%) 10254022 ( 1.02%) 104.51
rtsp 1013025 ( 50.65%) 830274923 ( 82.34%) 819.60
other 365777 ( 18.29%) 64550520 ( 6.40%) 176.48
udp6 64552 ( 3.23%) 11375999 ( 1.13%) 176.23
dns 37693 ( 1.88%) 6037181 ( 0.60%) 160.17
other 26859 ( 1.34%) 5338818 ( 0.53%) 198.77
icmp6 373068 ( 18.65%) 55219175 ( 5.48%) 148.01
ip6 94 ( 0.00%) 25858 ( 0.00%) 275.09
pim6 1276 ( 0.06%) 136532 ( 0.01%) 107.00
other6 106 ( 0.01%) 136615 ( 0.01%) 1288.82
tcpdump file: 200312070900.dump.gz (32.60 MB)
