Traffic Trace Info

DumpFile: 200407210900.dump
FileSize: 223.08MB
Id: 200407210900
StartTime: Wed Jul 21 09:00:01 2004
EndTime: Wed Jul 21 13:12:04 2004
TotalTime: 15122.76 seconds
TotalCapSize: 162.16MB CapLen: 96 bytes
# of packets: 2000000 (667.56MB)
AvgRate: 370.11Kbps stddev:2349.84K

IP flow (unique src/dst pair) Information

# of flows: 10838 (avg. 184.54 pkts/flow)
Top 10 big flow size (bytes/total in %):
26.7% 25.1% 19.2% 3.5% 3.0% 2.4% 1.3% 1.0% 0.9% 0.3%

IP address Information

# of IPv6 addresses: 3769
Top 10 bandwidth usage (bytes/total in %):
26.7% 26.7% 26.4% 26.4% 19.2% 19.2% 3.8% 3.5% 3.0% 3.0%

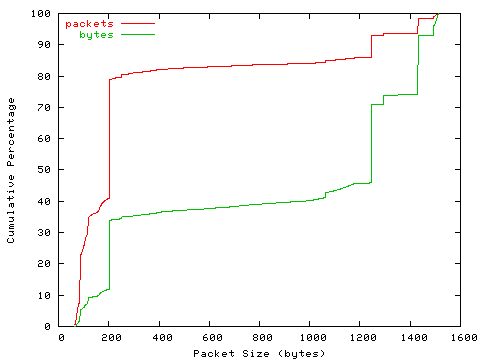

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:      14121
 [   64-  127]:     693333
 [  128-  255]:     902661
 [  256-  511]:      42319
 [  512- 1023]:      31322
 [ 1024- 2047]:     316244

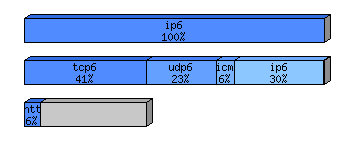

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)        699992063 (100.00%)    350.00
 ip6            2000000 (100.00%)        699992063 (100.00%)    350.00
  tcp6           558112 ( 27.91%)        286318420 ( 40.90%)    513.01
   http(s)        30723 (  1.54%)         39379031 (  5.63%)   1281.74
   http(c)        56293 (  2.81%)          6733393 (  0.96%)    119.61
   squid           1088 (  0.05%)           869689 (  0.12%)    799.35
   smtp           13081 (  0.65%)          2541302 (  0.36%)    194.27
   nntp              18 (  0.00%)             1500 (  0.00%)     83.33
   ftp            14582 (  0.73%)          7529983 (  1.08%)    516.39
   ssh            16789 (  0.84%)          4322146 (  0.62%)    257.44
   dns              810 (  0.04%)            90354 (  0.01%)    111.55
   bgp            77722 (  3.89%)          9250841 (  1.32%)    119.02
   other         347006 ( 17.35%)        215600181 ( 30.80%)    621.32
  udp6           263198 ( 13.16%)        163876643 ( 23.41%)    622.64
   dns           158176 (  7.91%)         25968799 (  3.71%)    164.18
   other         105022 (  5.25%)        137907844 ( 19.70%)   1313.13
  icmp6          335460 ( 16.77%)         41535967 (  5.93%)    123.82
  ip4              4858 (  0.24%)           570236 (  0.08%)    117.38
  ip6            837662 ( 41.88%)        207603275 ( 29.66%)    247.84
  ipsec6            103 (  0.01%)            14862 (  0.00%)    144.29
  pim6              505 (  0.03%)            64640 (  0.01%)    128.00
  other6            102 (  0.01%)             8020 (  0.00%)     78.63

tcpdump file: 200407210900.dump.gz (27.54 MB)
