Traffic Trace Info


DumpFile: 200409160900.dump
FileSize: 178.87MB
Id: 200409160900
StartTime: Thu Sep 16 09:00:01 2004
EndTime: Thu Sep 16 18:12:08 2004
TotalTime: 33126.95 seconds
TotalCapSize: 144.75MB CapLen: 96 bytes
# of packets: 2000000 (443.85MB)
AvgRate: 112.39Kbps stddev:315.76K

IP flow (unique src/dst pair) Information

# of flows: 14960 (avg. 133.69 pkts/flow)
Top 10 big flow size (bytes/total in %):
12.6% 12.3% 9.1% 2.6% 1.9% 1.7% 1.6% 1.4% 1.4% 1.1%

IP address Information

# of IPv6 addresses: 3906
Top 10 bandwidth usage (bytes/total in %):
12.6% 12.6% 12.5% 12.3% 9.1% 9.1% 6.0% 4.4% 3.7% 3.5%

Packet Size Distribution (including MAC headers)

[packet size distribution]
detailed numbers
 [   32-   63]:       2183
 [   64-  127]:    1292362
 [  128-  255]:     429894
 [  256-  511]:      76926
 [  512- 1023]:      50726
 [ 1024- 2047]:     147909


Protocol Breakdown

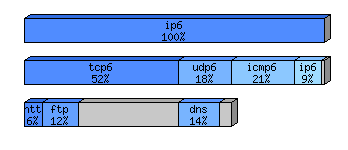

[protocol breakdown chart]

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)        465407559 (100.00%)    232.70
 ip6            2000000 (100.00%)        465407559 (100.00%)    232.70
  tcp6           701674 ( 35.08%)        240050889 ( 51.58%)    342.11
   http(s)        30679 (  1.53%)         28354325 (  6.09%)    924.23
   http(c)        62993 (  3.15%)          6517753 (  1.40%)    103.47
   squid           2933 (  0.15%)          1662047 (  0.36%)    566.67
   smtp           26797 (  1.34%)          5582175 (  1.20%)    208.31
   nntp             381 (  0.02%)           149824 (  0.03%)    393.24
   ftp            51580 (  2.58%)         55549626 ( 11.94%)   1076.96
   pop3             152 (  0.01%)            13860 (  0.00%)     91.18
   imap             132 (  0.01%)            11631 (  0.00%)     88.11
   ssh            82143 (  4.11%)         14100696 (  3.03%)    171.66
   dns              248 (  0.01%)            32749 (  0.01%)    132.05
   bgp           142903 (  7.15%)         14516381 (  3.12%)    101.58
   other         300733 ( 15.04%)        113559822 ( 24.40%)    377.61
  udp6           444999 ( 22.25%)         81502767 ( 17.51%)    183.15
   dns           383390 ( 19.17%)         63626857 ( 13.67%)    165.96
   other          61609 (  3.08%)         17875910 (  3.84%)    290.15
  icmp6          737294 ( 36.86%)         97958513 ( 21.05%)    132.86
  ospf6            3312 (  0.17%)           298080 (  0.06%)     90.00
  ip4             20006 (  1.00%)          3252322 (  0.70%)    162.57
  ip6             91351 (  4.57%)         42165904 (  9.06%)    461.58
  ipsec6            256 (  0.01%)            37376 (  0.01%)    146.00
  pim6             1106 (  0.06%)           141568 (  0.03%)    128.00
  other6              2 (  0.00%)              140 (  0.00%)     70.00


tcpdump file: 200409160900.dump.gz (38.71 MB)
