Traffic Trace Info

DumpFile: 200409300900.dump
FileSize: 183.36MB
Id: 200409300900
StartTime: Thu Sep 30 09:00:01 2004
EndTime: Thu Sep 30 10:36:54 2004
TotalTime: 5813.17 seconds
TotalCapSize: 152.21MB CapLen: 96 bytes
# of packets: 2000000 (1743.11MB)
AvgRate: 2.51Mbps stddev:9.06M

IP flow (unique src/dst pair) Information

# of flows: 6523 (avg. 306.61 pkts/flow)
Top 10 big flow size (bytes/total in %):
56.8% 35.3% 2.7% 1.1% 0.7% 0.4% 0.4% 0.0% 0.0% 0.0%

IP address Information

# of IPv6 addresses: 2551
Top 10 bandwidth usage (bytes/total in %):
59.9% 56.8% 36.4% 36.4% 2.7% 0.7% 0.7% 0.4% 0.4% 0.4%

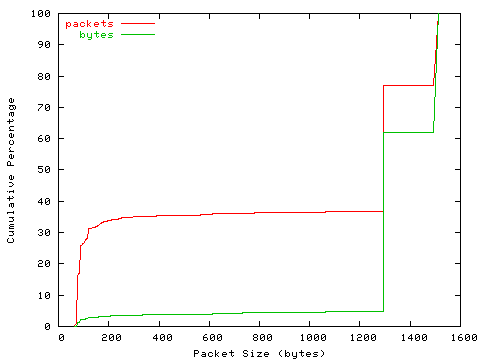

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:       4271
 [   64-  127]:     622142
 [  128-  255]:      68559
 [  256-  511]:      15902
 [  512- 1023]:      17322
 [ 1024- 2047]:    1271804

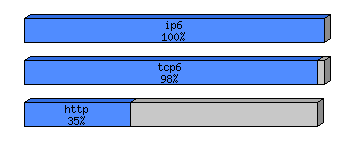

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)       1827779319 (100.00%)    913.89
 ip6            2000000 (100.00%)       1827779319 (100.00%)    913.89
  tcp6          1776431 ( 88.82%)       1790445393 ( 97.96%)   1007.89
   http(s)       428838 ( 21.44%)        647712396 ( 35.44%)   1510.39
   http(c)       363304 ( 18.17%)         28579557 (  1.56%)     78.67
   squid              1 (  0.00%)               74 (  0.00%)     74.00
   smtp            2989 (  0.15%)           546022 (  0.03%)    182.68
   nntp             495 (  0.02%)            46456 (  0.00%)     93.85
   ftp             4761 (  0.24%)          6574820 (  0.36%)   1380.97
   imap              38 (  0.00%)             3476 (  0.00%)     91.47
   ssh            42266 (  2.11%)         15117744 (  0.83%)    357.68
   dns               29 (  0.00%)             2937 (  0.00%)    101.28
   bgp            28219 (  1.41%)          3009629 (  0.16%)    106.65
   other         905491 ( 45.27%)       1088852282 ( 59.57%)   1202.50
  udp6            68023 (  3.40%)         10886052 (  0.60%)    160.03
   dns            64634 (  3.23%)          9715682 (  0.53%)    150.32
   other           3389 (  0.17%)          1170370 (  0.06%)    345.34
  icmp6          135446 (  6.77%)         17920371 (  0.98%)    132.31
  ospf6             581 (  0.03%)            52290 (  0.00%)     90.00
  ip4              2028 (  0.10%)           241517 (  0.01%)    119.09
  ip6             17279 (  0.86%)          8194608 (  0.45%)    474.25
  pim6              194 (  0.01%)            24832 (  0.00%)    128.00
  other6             18 (  0.00%)            14256 (  0.00%)    792.00

tcpdump file: 200409300900.dump.gz (24.69 MB)
