Traffic Trace Info
DumpFile: 200410020900.dump
FileSize: 191.44MB
Id: 200410020900
StartTime: Sat Oct 2 09:00:01 2004
EndTime: Sat Oct 2 10:19:43 2004
TotalTime: 4781.68 seconds
TotalCapSize: 160.92MB CapLen: 96 bytes
# of packets: 2000000 (2301.35MB)
AvgRate: 4.04Mbps stddev:5.81M
IP flow (unique src/dst pair) Information
# of flows: 5730 (avg. 349.04 pkts/flow)
Top 10 big flow size (bytes/total in %):
52.9% 44.5% 1.1% 0.1% 0.0% 0.0% 0.0% 0.0% 0.0% 0.0%
IP address Information
# of IPv6 addresses: 2500
Top 10 bandwidth usage (bytes/total in %):
98.5% 52.9% 44.5% 1.1% 0.2% 0.1% 0.1% 0.1% 0.1% 0.1%

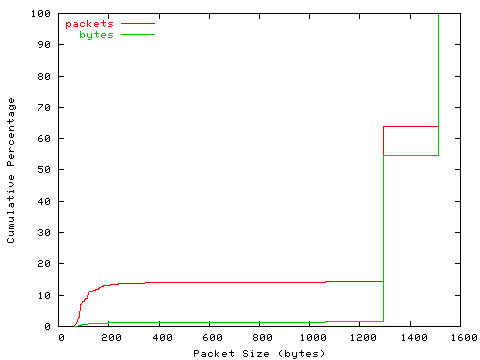

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200410020900.pktlen.png)
detailed numbers
[ 32- 63]: 5129
[ 64- 127]: 217188
[ 128- 255]: 51997
[ 256- 511]: 6027
[ 512- 1023]: 2991
[ 1024- 2047]: 1716668

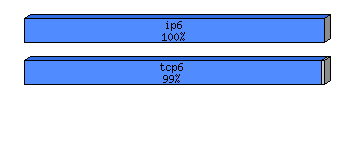

Protocol Breakdown
![[protocol breakdown chart]](200410020900.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 2000000 (100.00%) 2413140598 (100.00%) 1206.57
ip6 2000000 (100.00%) 2413140598 (100.00%) 1206.57
tcp6 1836171 ( 91.81%) 2389585608 ( 99.02%) 1301.40
http(s) 980 ( 0.05%) 941683 ( 0.04%) 960.90
http(c) 4739 ( 0.24%) 521189 ( 0.02%) 109.98
squid 133 ( 0.01%) 186554 ( 0.01%) 1402.66
smtp 7052 ( 0.35%) 2481586 ( 0.10%) 351.90
nntp 773 ( 0.04%) 71747 ( 0.00%) 92.82
ftp 12937 ( 0.65%) 7888832 ( 0.33%) 609.79
ssh 1857 ( 0.09%) 362755 ( 0.02%) 195.34
dns 12 ( 0.00%) 1158 ( 0.00%) 96.50
bgp 18790 ( 0.94%) 1903711 ( 0.08%) 101.32
other 1788898 ( 89.44%) 2375226393 ( 98.43%) 1327.76
udp6 46763 ( 2.34%) 8409553 ( 0.35%) 179.83
dns 40190 ( 2.01%) 6666941 ( 0.28%) 165.89
other 6573 ( 0.33%) 1742612 ( 0.07%) 265.12
icmp6 114252 ( 5.71%) 14777997 ( 0.61%) 129.35
ospf6 478 ( 0.02%) 43020 ( 0.00%) 90.00
ip4 1511 ( 0.08%) 179006 ( 0.01%) 118.47
ip6 666 ( 0.03%) 125062 ( 0.01%) 187.78
pim6 159 ( 0.01%) 20352 ( 0.00%) 128.00
tcpdump file: 200410020900.dump.gz (26.24 MB)
