Traffic Trace Info
DumpFile: 200410270900.dump
FileSize: 186.84MB
Id: 200410270900
StartTime: Wed Oct 27 09:00:01 2004
EndTime: Wed Oct 27 10:50:35 2004
TotalTime: 6633.91 seconds
TotalCapSize: 156.29MB CapLen: 96 bytes
# of packets: 2000000 (1509.19MB)
AvgRate: 1.91Mbps stddev:4.64M
IP flow (unique src/dst pair) Information
# of flows: 7823 (avg. 255.66 pkts/flow)
Top 10 big flow size (bytes/total in %):
72.2% 7.7% 7.2% 2.8% 1.9% 0.9% 0.4% 0.4% 0.3% 0.3%
IP address Information
# of IPv6 addresses: 2862
Top 10 bandwidth usage (bytes/total in %):
74.1% 72.2% 9.2% 8.1% 8.1% 7.3% 2.8% 2.8% 1.9% 1.7%

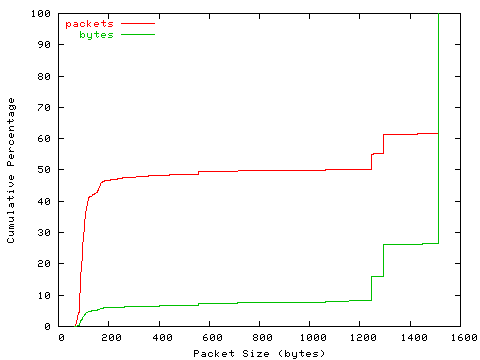

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200410270900.pktlen.png)
detailed numbers
[ 32- 63]: 426
[ 64- 127]: 829264
[ 128- 255]: 119246
[ 256- 511]: 21851
[ 512- 1023]: 27028
[ 1024- 2047]: 1002185

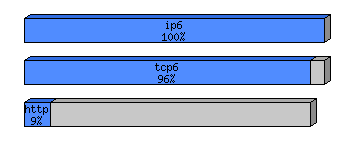

Protocol Breakdown
![[protocol breakdown chart]](200410270900.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 2000000 (100.00%) 1582497146 (100.00%) 791.25
ip6 2000000 (100.00%) 1582497146 (100.00%) 791.25
tcp6 1410115 ( 70.51%) 1512903136 ( 95.60%) 1072.89
http(s) 125682 ( 6.28%) 138068279 ( 8.72%) 1098.55
http(c) 156318 ( 7.82%) 15966386 ( 1.01%) 102.14
squid 35 ( 0.00%) 20926 ( 0.00%) 597.89
smtp 3927 ( 0.20%) 1247306 ( 0.08%) 317.62
nntp 1 ( 0.00%) 98 ( 0.00%) 98.00
ftp 33014 ( 1.65%) 10513986 ( 0.66%) 318.47
imap 33 ( 0.00%) 3035 ( 0.00%) 91.97
ssh 19978 ( 1.00%) 2622618 ( 0.17%) 131.28
dns 72 ( 0.00%) 12003 ( 0.00%) 166.71
bgp 27320 ( 1.37%) 2653109 ( 0.17%) 97.11
rtsp 8 ( 0.00%) 624 ( 0.00%) 78.00
other 1043727 ( 52.19%) 1341794766 ( 84.79%) 1285.58
udp6 444707 ( 22.24%) 50244565 ( 3.18%) 112.98
dns 443763 ( 22.19%) 50005689 ( 3.16%) 112.69
other 944 ( 0.05%) 238876 ( 0.02%) 253.05
icmp6 141869 ( 7.09%) 18976672 ( 1.20%) 133.76
ospf6 664 ( 0.03%) 59760 ( 0.00%) 90.00
ip4 2233 ( 0.11%) 264491 ( 0.02%) 118.45
ip6 167 ( 0.01%) 17034 ( 0.00%) 102.00
ipsec6 20 ( 0.00%) 2920 ( 0.00%) 146.00
pim6 221 ( 0.01%) 28288 ( 0.00%) 128.00
other6 4 ( 0.00%) 280 ( 0.00%) 70.00
tcpdump file: 200410270900.dump.gz (30.05 MB)
