Traffic Trace Info

DumpFile: 200501190900.dump
FileSize: 173.05MB
Id: 200501190900
StartTime: Wed Jan 19 09:00:01 2005
EndTime: Wed Jan 19 13:18:28 2005
TotalTime: 15506.78 seconds
TotalCapSize: 142.43MB CapLen: 96 bytes
# of packets: 2000000 (379.44MB)
AvgRate: 205.24Kbps stddev:700.50K

IP flow (unique src/dst pair) Information

# of flows: 14896 (avg. 134.26 pkts/flow)
Top 10 big flow size (bytes/total in %):
8.1% 7.9% 6.3% 6.1% 5.5% 4.6% 4.4% 4.1% 3.2% 2.8%

IP address Information

# of IPv6 addresses: 4236
Top 10 bandwidth usage (bytes/total in %):
13.2% 8.8% 8.7% 8.7% 8.1% 8.1% 7.5% 6.4% 6.4% 6.4%

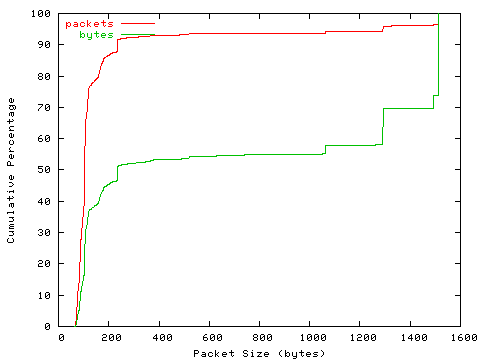

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:        284
 [   64-  127]:    1537840
 [  128-  255]:     302682
 [  256-  511]:      23614
 [  512- 1023]:       9077
 [ 1024- 2047]:     126503

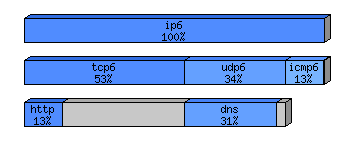

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)        397867108 (100.00%)    198.93
 ip6            2000000 (100.00%)        397867108 (100.00%)    198.93
  tcp6           554886 ( 27.74%)        212233602 ( 53.34%)    382.48
   http(s)        39210 (  1.96%)         50838134 ( 12.78%)   1296.56
   http(c)        27466 (  1.37%)          2775267 (  0.70%)    101.04
   squid            480 (  0.02%)            37670 (  0.01%)     78.48
   smtp           50295 (  2.51%)          5311255 (  1.33%)    105.60
   nntp             745 (  0.04%)           169121 (  0.04%)    227.01
   ftp             5313 (  0.27%)          6681952 (  1.68%)   1257.66
   pop3               3 (  0.00%)              222 (  0.00%)     74.00
   ssh            12993 (  0.65%)          2302134 (  0.58%)    177.18
   dns              102 (  0.01%)            12094 (  0.00%)    118.57
   bgp            59703 (  2.99%)          5631609 (  1.42%)     94.33
   icecast           29 (  0.00%)             2262 (  0.00%)     78.00
   other         358547 ( 17.93%)        138471882 ( 34.80%)    386.20
  udp6          1019287 ( 50.96%)        134093775 ( 33.70%)    131.56
   dns           955716 ( 47.79%)        122543575 ( 30.80%)    128.22
   other          63571 (  3.18%)         11550200 (  2.90%)    181.69
  icmp6          416065 ( 20.80%)         50403186 ( 12.67%)    121.14
  ospf6            1551 (  0.08%)           139590 (  0.04%)     90.00
  ip4              5043 (  0.25%)           602003 (  0.15%)    119.37
  ip6              1226 (  0.06%)           173504 (  0.04%)    141.52
  ipsec6             74 (  0.00%)            10804 (  0.00%)    146.00
  pim6             1553 (  0.08%)           175994 (  0.04%)    113.33
  other6            315 (  0.02%)            34650 (  0.01%)    110.00

tcpdump file: 200501190900.dump.gz (33.52 MB)
