Traffic Trace Info

DumpFile: 200507260900.dump
FileSize: 172.90MB
Id: 200507260900
StartTime: Tue Jul 26 09:00:00 2005
EndTime: Tue Jul 26 12:13:38 2005
TotalTime: 11617.97 seconds
TotalCapSize: 142.38MB CapLen: 128 bytes
# of packets: 2000000 (813.81MB)
AvgRate: 587.61Kbps stddev:941.64K

IP flow (unique src/dst pair) Information

# of flows: 14315 (avg. 139.71 pkts/flow)
Top 10 big flow size (bytes/total in %):
12.4% 11.0% 10.7% 7.6% 6.5% 3.5% 2.3% 2.0% 2.0% 1.5%

IP address Information

# of IPv6 addresses: 5806
Top 10 bandwidth usage (bytes/total in %):
18.9% 12.4% 12.4% 11.0% 11.0% 10.7% 10.7% 8.5% 7.6% 7.6%

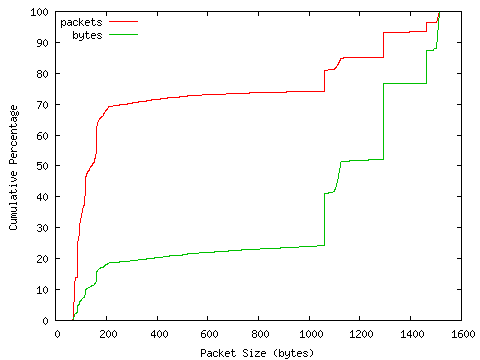

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:        302
 [   64-  127]:     958056
 [  128-  255]:     436740
 [  256-  511]:      54626
 [  512- 1023]:      33701
 [ 1024- 2047]:     516575

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)        853345984 (100.00%)    426.67
 ip6            2000000 (100.00%)        853345984 (100.00%)    426.67
  tcp6           941073 ( 47.05%)        503257275 ( 58.97%)    534.77
   http(s)        21200 (  1.06%)         26192308 (  3.07%)   1235.49
   http(c)       243115 ( 12.16%)         27940908 (  3.27%)    114.93
   squid            935 (  0.05%)            70545 (  0.01%)     75.45
   smtp           18123 (  0.91%)          4019696 (  0.47%)    221.80
   nntp           55876 (  2.79%)          7981700 (  0.94%)    142.85
   ftp            21957 (  1.10%)          2429749 (  0.28%)    110.66
   ssh           193287 (  9.66%)        215367960 ( 25.24%)   1114.24
   dns               74 (  0.00%)             8733 (  0.00%)    118.01
   bgp            43915 (  2.20%)          3958430 (  0.46%)     90.14
   icecast           49 (  0.00%)             3934 (  0.00%)     80.29
   other         342542 ( 17.13%)        215283312 ( 25.23%)    628.49
  udp6           451958 ( 22.60%)         63270117 (  7.41%)    139.99
   dns           425618 ( 21.28%)         56590729 (  6.63%)    132.96
   other          26340 (  1.32%)          6679388 (  0.78%)    253.58
  icmp6          492270 ( 24.61%)        190519330 ( 22.33%)    387.02
  ospf6            1162 (  0.06%)           104580 (  0.01%)     90.00
  ip4                65 (  0.00%)            12350 (  0.00%)    190.00
  ip6            103454 (  5.17%)         94480326 ( 11.07%)    913.26
  pim6            10010 (  0.50%)          1695670 (  0.20%)    169.40
  other6              8 (  0.00%)             6336 (  0.00%)    792.00

tcpdump file: 200507260900.dump.gz (34.60 MB)
