Traffic Trace Info

DumpFile: 200512020900.dump
FileSize: 174.05MB
Id: 200512020900
StartTime: Fri Dec 2 09:00:00 2005
EndTime: Fri Dec 2 11:08:09 2005
TotalTime: 7688.17 seconds
TotalCapSize: 143.53MB CapLen: 128 bytes
# of packets: 2000000 (1518.26MB)
AvgRate: 1.66Mbps stddev:0.19M

IP flow (unique src/dst pair) Information

# of flows: 10110 (avg. 197.82 pkts/flow)
Top 10 big flow size (bytes/total in %):
90.9% 0.8% 0.7% 0.3% 0.3% 0.2% 0.2% 0.2% 0.2% 0.2%

IP address Information

# of IPv6 addresses: 3009
Top 10 bandwidth usage (bytes/total in %):
91.0% 90.9% 3.0% 0.8% 0.8% 0.8% 0.5% 0.3% 0.3% 0.3%

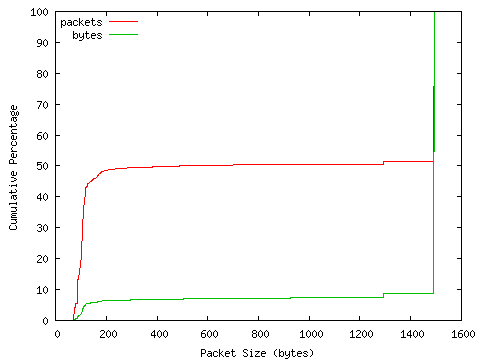

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:         78
 [   64-  127]:     883182
 [  128-  255]:     101981
 [  256-  511]:      16080
 [  512- 1023]:       7963
 [ 1024- 2047]:     990716

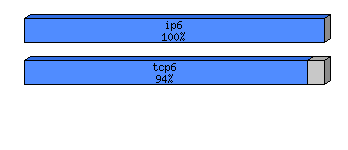

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)       1592006145 (100.00%)    796.00
 ip6            2000000 (100.00%)       1592006145 (100.00%)    796.00
  tcp6          1244225 ( 62.21%)       1503210372 ( 94.42%)   1208.15
   http(s)         9362 (  0.47%)          9763586 (  0.61%)   1042.90
   http(c)        78379 (  3.92%)          9037618 (  0.57%)    115.31
   squid              6 (  0.00%)              468 (  0.00%)     78.00
   smtp           10233 (  0.51%)          1877812 (  0.12%)    183.51
   nntp           20036 (  1.00%)          2507592 (  0.16%)    125.15
   ftp            41703 (  2.09%)          4019498 (  0.25%)     96.38
   pop3               3 (  0.00%)              222 (  0.00%)     74.00
   ssh            15828 (  0.79%)          3301084 (  0.21%)    208.56
   dns              954 (  0.05%)            89591 (  0.01%)     93.91
   bgp            36760 (  1.84%)          3863978 (  0.24%)    105.11
   other        1030961 ( 51.55%)       1468748923 ( 92.26%)   1424.64
  udp6           592587 ( 29.63%)         70129430 (  4.41%)    118.34
   dns           581748 ( 29.09%)         67462775 (  4.24%)    115.97
   other          10839 (  0.54%)          2666655 (  0.17%)    246.02
  icmp6          151033 (  7.55%)         16699830 (  1.05%)    110.57
  ospf6             769 (  0.04%)            69210 (  0.00%)     90.00
  ip4              1167 (  0.06%)           138291 (  0.01%)    118.50
  ip6              7253 (  0.36%)          1373419 (  0.09%)    189.36
  pim6             2964 (  0.15%)           383544 (  0.02%)    129.40
  other6              2 (  0.00%)             2049 (  0.00%)   1024.50

tcpdump file: 200512020900.dump.gz (32.46 MB)
