Traffic Trace Info
DumpFile: 200108220900.dump
FileSize: 159.54MB
Id: 200108220900
StartTime: Wed Aug 22 09:00:01 2001
EndTime: Thu Aug 23 02:59:59 2001
TotalTime: 64797.88 seconds
TotalCapSize: 132.54MB CapLen: 96 bytes
# of packets: 1768876 (526.17MB)
AvgRate: 68.12Kbps stddev:166.32K
IP flow (unique src/dst pair) Information
# of flows: 3107 (avg. 569.32 pkts/flow)
Top 10 big flow size (bytes/total in %):
27.0% 17.9% 11.8% 5.0% 3.5% 3.3% 2.9% 2.7% 2.3% 2.0%
IP address Information
# of IPv6 addresses: 1059
Top 10 bandwidth usage (bytes/total in %):
32.2% 32.2% 19.1% 18.5% 12.8% 12.3% 7.7% 4.4% 3.7% 3.7%

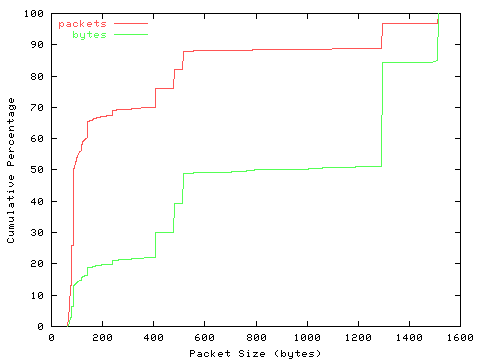

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200108220900.pktlen.png)
detailed numbers
[ 32- 63]: 1
[ 64- 127]: 1049641
[ 128- 255]: 173851
[ 256- 511]: 229866
[ 512- 1023]: 112972
[ 1024- 2047]: 202545

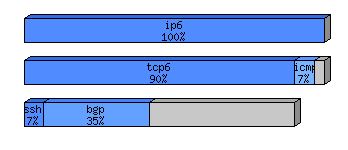

Protocol Breakdown
![[protocol breakdown chart]](200108220900.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 1768876 (100.00%) 551730805 (100.00%) 311.91
ip6 1768876 (100.00%) 551730805 (100.00%) 311.91
tcp6 1371343 ( 77.53%) 497497902 ( 90.17%) 362.78
http(s) 23311 ( 1.32%) 22073519 ( 4.00%) 946.91
http(c) 18329 ( 1.04%) 2207669 ( 0.40%) 120.45
smtp 22521 ( 1.27%) 5442769 ( 0.99%) 241.68
nntp 4 ( 0.00%) 336 ( 0.00%) 84.00
ftp 4765 ( 0.27%) 825544 ( 0.15%) 173.25
ssh 81083 ( 4.58%) 35901236 ( 6.51%) 442.77
dns 75 ( 0.00%) 50299 ( 0.01%) 670.65
bgp 867245 ( 49.03%) 194618509 ( 35.27%) 224.41
other 354010 ( 20.01%) 236378021 ( 42.84%) 667.72
udp6 35660 ( 2.02%) 11269201 ( 2.04%) 316.02
dns 23642 ( 1.34%) 4032953 ( 0.73%) 170.58
other 12018 ( 0.68%) 7236248 ( 1.31%) 602.12
icmp6 309860 ( 17.52%) 37293567 ( 6.76%) 120.36
ospf6 47430 ( 2.68%) 5235440 ( 0.95%) 110.38
pim6 4456 ( 0.25%) 388386 ( 0.07%) 87.16
other6 127 ( 0.01%) 46309 ( 0.01%) 364.64
tcpdump file: 200108220900.dump.gz (23.64 MB)
