Traffic Trace Info


DumpFile: 200112130900.dump
FileSize: 93.88MB
Id: 200112130900
StartTime: Thu Dec 13 09:00:00 2001
EndTime: Fri Dec 14 03:00:00 2001
TotalTime: 64800.06 seconds
TotalCapSize: 75.48MB CapLen: 96 bytes
# of packets: 1008082 (591.69MB)
AvgRate: 83.55Kbps stddev:333.17K

IP flow (unique src/dst pair) Information

# of flows: 2888 (avg. 349.06 pkts/flow)
Top 10 big flow size (bytes/total in %):
35.2% 28.4% 11.7% 3.5% 1.4% 1.1% 1.1% 1.1% 1.1% 1.0%

IP address Information

# of IPv6 addresses: 1222
Top 10 bandwidth usage (bytes/total in %):
47.9% 35.2% 29.4% 29.4% 11.7% 3.5% 3.5% 1.6% 1.5% 1.4%

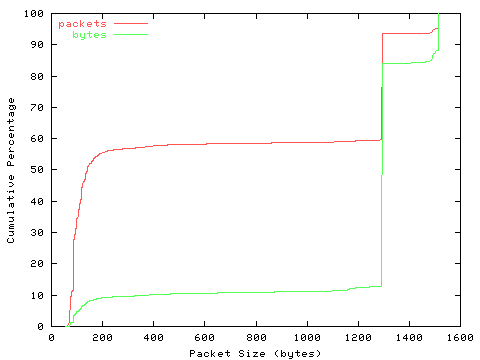

Packet Size Distribution (including MAC headers)

[packet size distribution]
detailed numbers
 [   32-   63]:         11
 [   64-  127]:     465510
 [  128-  255]:     104200
 [  256-  511]:      16182
 [  512- 1023]:       6159
 [ 1024- 2047]:     416020


Protocol Breakdown

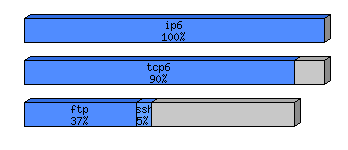

[protocol breakdown chart]

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          1008082 (100.00%)        620437057 (100.00%)    615.46
 ip6            1008082 (100.00%)        620437057 (100.00%)    615.46
  tcp6           748146 ( 74.21%)        558674552 ( 90.05%)    746.75
   http(s)         9327 (  0.93%)          8287589 (  1.34%)    888.56
   http(c)        72149 (  7.16%)          6238457 (  1.01%)     86.47
   squid           1386 (  0.14%)          1195378 (  0.19%)    862.47
   smtp           24605 (  2.44%)          5652236 (  0.91%)    229.72
   ftp           194434 ( 19.29%)        232026744 ( 37.40%)   1193.34
   pop3            3241 (  0.32%)           276289 (  0.04%)     85.25
   imap            1182 (  0.12%)           126932 (  0.02%)    107.39
   telnet            31 (  0.00%)             2646 (  0.00%)     85.35
   ssh           139785 ( 13.87%)         32085243 (  5.17%)    229.53
   dns              103 (  0.01%)             9584 (  0.00%)     93.05
   bgp            27948 (  2.77%)          3009397 (  0.49%)    107.68
   icecast         1209 (  0.12%)           219068 (  0.04%)    181.20
   other         272746 ( 27.06%)        269544989 ( 43.44%)    988.26
  udp6            53070 (  5.26%)         13798321 (  2.22%)    260.00
   dns            33029 (  3.28%)          5082145 (  0.82%)    153.87
   other          20041 (  1.99%)          8716176 (  1.40%)    434.92
  icmp6          119591 ( 11.86%)         14713278 (  2.37%)    123.03
  ospf6           50905 (  5.05%)          5577450 (  0.90%)    109.57
  ipsec6           6984 (  0.69%)           954384 (  0.15%)    136.65
  rtopt6             26 (  0.00%)             3700 (  0.00%)    142.31
  dstopt6            27 (  0.00%)             2962 (  0.00%)    109.70
  pim6             6203 (  0.62%)           697516 (  0.11%)    112.45
  other6          23130 (  2.29%)         26014894 (  4.19%)   1124.73


tcpdump file: 200112130900.dump.gz (13.54 MB)
