Traffic Trace Info
DumpFile: 200305040900.dump
FileSize: 313.45MB
Id: 200305040900
StartTime: Sun May 4 09:00:01 2003
EndTime: Sun May 4 10:11:19 2003
TotalTime: 4277.28 seconds
TotalCapSize: 166.21MB CapLen: 96 bytes
# of packets: 2000000 (1547.96MB)
AvgRate: 3.04Mbps stddev:0.36M
IP flow (unique src/dst pair) Information
# of flows: 941 (avg. 2125.40 pkts/flow)
Top 10 big flow size (bytes/total in %):
90.3% 4.5% 1.8% 1.3% 0.7% 0.4% 0.2% 0.1% 0.0% 0.0%
IP address Information
# of IPv6 addresses: 584
Top 10 bandwidth usage (bytes/total in %):
94.8% 94.8% 4.3% 1.8% 1.3% 0.7% 0.4% 0.2% 0.2% 0.2%

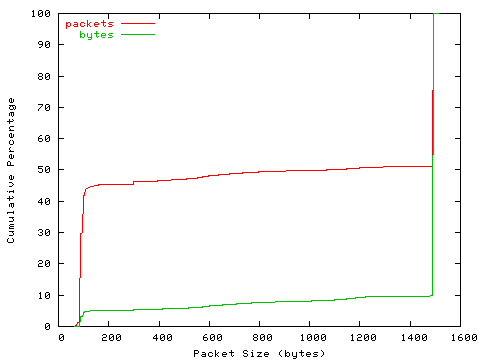

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200305040900.pktlen.png)
detailed numbers
[ 32- 63]: 30
[ 64- 127]: 892737
[ 128- 255]: 16177
[ 256- 511]: 33565
[ 512- 1023]: 55293
[ 1024- 2047]: 1002198

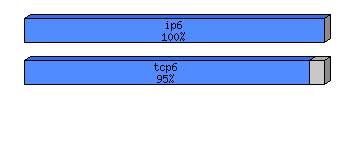

Protocol Breakdown
![[protocol breakdown chart]](200305040900.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 2000000 (100.00%) 1623154152 (100.00%) 811.58
ip6 2000000 (100.00%) 1623154152 (100.00%) 811.58
tcp6 1853665 ( 92.68%) 1545719139 ( 95.23%) 833.87
http(s) 317 ( 0.02%) 319748 ( 0.02%) 1008.67
http(c) 1707 ( 0.09%) 202035 ( 0.01%) 118.36
smtp 1936 ( 0.10%) 303400 ( 0.02%) 156.71
nntp 164 ( 0.01%) 80073 ( 0.00%) 488.25
ftp 4823 ( 0.24%) 1343296 ( 0.08%) 278.52
pop3 97 ( 0.00%) 18125 ( 0.00%) 186.86
ssh 1354 ( 0.07%) 534178 ( 0.03%) 394.52
bgp 11188 ( 0.56%) 1128705 ( 0.07%) 100.89
other 1832079 ( 91.60%) 1541789579 ( 94.99%) 841.55
udp6 2860 ( 0.14%) 468528 ( 0.03%) 163.82
dns 2171 ( 0.11%) 297186 ( 0.02%) 136.89
other 689 ( 0.03%) 171342 ( 0.01%) 248.68
icmp6 34338 ( 1.72%) 6482419 ( 0.40%) 188.78
ospf6 6559 ( 0.33%) 755606 ( 0.05%) 115.20
ip6 102136 ( 5.11%) 69668202 ( 4.29%) 682.11
pim6 427 ( 0.02%) 41852 ( 0.00%) 98.01
other6 15 ( 0.00%) 18406 ( 0.00%) 1227.07
tcpdump file: 200305040900.dump.gz (33.64 MB)
