Traffic Trace Info


DumpFile: 200309290900.dump
FileSize: 171.36MB
Id: 200309290900
StartTime: Mon Sep 29 09:00:01 2003
EndTime: Mon Sep 29 22:28:58 2003
TotalTime: 48537.09 seconds
TotalCapSize: 140.83MB CapLen: 96 bytes
# of packets: 2000000 (826.60MB)
AvgRate: 142.86Kbps stddev:978.35K

IP flow (unique src/dst pair) Information

# of flows: 8089 (avg. 247.25 pkts/flow)
Top 10 big flow size (bytes/total in %):
46.7% 7.5% 5.8% 4.5% 2.1% 2.1% 2.0% 1.4% 1.3% 1.3%

IP address Information

# of IPv6 addresses: 2810
Top 10 bandwidth usage (bytes/total in %):
46.8% 46.7% 7.5% 7.5% 7.2% 5.9% 5.8% 4.5% 3.4% 3.4%

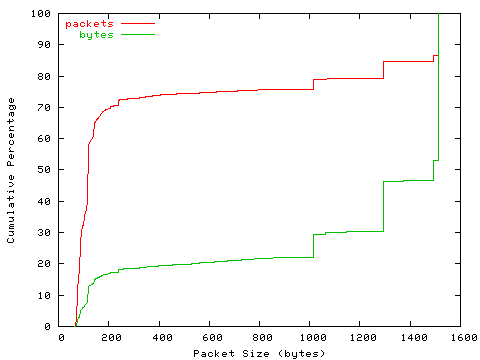

Packet Size Distribution (including MAC headers)

[packet size distribution]
detailed numbers
 [   32-   63]:       2719
 [   64-  127]:    1184167
 [  128-  255]:     263271
 [  256-  511]:      37142
 [  512- 1023]:      89000
 [ 1024- 2047]:     423701

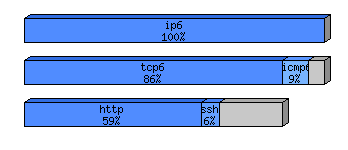

Protocol Breakdown

[protocol breakdown chart]

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)        866751219 (100.00%)    433.38
 ip6            2000000 (100.00%)        866751219 (100.00%)    433.38
  tcp6          1185288 ( 59.26%)        745765982 ( 86.04%)    629.19
   http(s)       374300 ( 18.71%)        512272722 ( 59.10%)   1368.62
   http(c)        56565 (  2.83%)          7473264 (  0.86%)    132.12
   squid             74 (  0.00%)             6782 (  0.00%)     91.65
   smtp           27601 (  1.38%)         10711994 (  1.24%)    388.10
   nntp           13243 (  0.66%)          3839434 (  0.44%)    289.92
   ftp            41424 (  2.07%)         11526251 (  1.33%)    278.25
   telnet             8 (  0.00%)              680 (  0.00%)     85.00
   ssh           214888 ( 10.74%)         52912315 (  6.10%)    246.23
   bgp           169076 (  8.45%)         15524592 (  1.79%)     91.82
   other         288109 ( 14.41%)        131497948 ( 15.17%)    456.42
  udp6           143323 (  7.17%)         28998480 (  3.35%)    202.33
   dns           101470 (  5.07%)         15719448 (  1.81%)    154.92
   other          41853 (  2.09%)         13279032 (  1.53%)    317.28
  icmp6          549563 ( 27.48%)         75434631 (  8.70%)    137.26
  ospf6          110541 (  5.53%)         13172562 (  1.52%)    119.16
  ip4               121 (  0.01%)            22300 (  0.00%)    184.30
  ip6              4324 (  0.22%)          1307544 (  0.15%)    302.39
  pim6             4846 (  0.24%)           445826 (  0.05%)     92.00
  other6           1994 (  0.10%)          1603894 (  0.19%)    804.36


tcpdump file: 200309290900.dump.gz (28.90 MB)
