Traffic Trace Info

DumpFile: 200412130900.dump
FileSize: 708.29MB
Id: 200412130900
StartTime: Mon Dec 13 09:00:01 2004
EndTime: Mon Dec 13 12:18:06 2004
TotalTime: 11885.18 seconds
TotalCapSize: 157.03MB CapLen: 96 bytes
# of packets: 2000000 (749.15MB)
AvgRate: 528.30Kbps stddev:2149.49K

IP flow (unique src/dst pair) Information

# of flows: 9850 (avg. 203.05 pkts/flow)
Top 10 big flow size (bytes/total in %):
31.6% 11.7% 11.5% 9.7% 5.8% 4.9% 3.2% 1.7% 1.0% 1.0%

IP address Information

# of IPv6 addresses: 3099
Top 10 bandwidth usage (bytes/total in %):
41.3% 31.6% 22.2% 12.6% 11.7% 11.5% 9.7% 5.8% 4.9% 3.2%

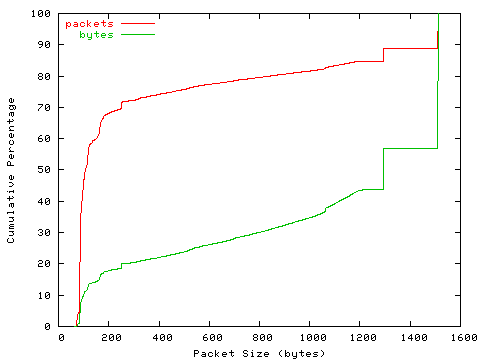

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:        284
 [   64-  127]:    1162039
 [  128-  255]:     273399
 [  256-  511]:      82159
 [  512- 1023]:     119265
 [ 1024- 2047]:     362854

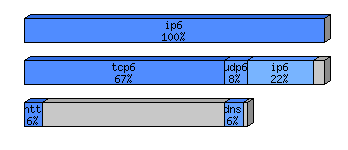

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)        785538556 (100.00%)    392.77
 ip6            2000000 (100.00%)        785538556 (100.00%)    392.77
  tcp6          1140678 ( 57.03%)        523682730 ( 66.67%)    459.10
   http(s)         5454 (  0.27%)          3253081 (  0.41%)    596.46
   http(c)       550917 ( 27.55%)         49390077 (  6.29%)     89.65
   squid             40 (  0.00%)             3088 (  0.00%)     77.20
   smtp            5532 (  0.28%)          1523693 (  0.19%)    275.43
   nntp               2 (  0.00%)              196 (  0.00%)     98.00
   ftp             6679 (  0.33%)          6864431 (  0.87%)   1027.76
   imap              43 (  0.00%)             3735 (  0.00%)     86.86
   telnet           527 (  0.03%)            39392 (  0.01%)     74.75
   ssh            42109 (  2.11%)          7161186 (  0.91%)    170.06
   dns             1964 (  0.10%)           199475 (  0.03%)    101.57
   bgp            63095 (  3.15%)          5899099 (  0.75%)     93.50
   other         464316 ( 23.22%)        449345277 ( 57.20%)    967.76
  udp6           429035 ( 21.45%)         60888103 (  7.75%)    141.92
   dns           371374 ( 18.57%)         50800249 (  6.47%)    136.79
   other          57661 (  2.88%)         10087854 (  1.28%)    174.95
  icmp6          138141 (  6.91%)         24232515 (  3.08%)    175.42
  ospf6           19407 (  0.97%)          2254230 (  0.29%)    116.16
  ip4               763 (  0.04%)            91090 (  0.01%)    119.38
  ip6            271138 ( 13.56%)        174051172 ( 22.16%)    641.93
  pim6              396 (  0.02%)            34056 (  0.00%)     86.00
  other6            442 (  0.02%)           304660 (  0.04%)    689.28

tcpdump file: 200412130900.dump.gz (41.90 MB)
