Traffic Trace Info

DumpFile: 200603190900.dump
FileSize: 189.11MB
Id: 200603190900
StartTime: Sun Mar 19 09:00:00 2006
EndTime: Sun Mar 19 13:35:15 2006
TotalTime: 16514.50 seconds
TotalCapSize: 158.59MB CapLen: 128 bytes
# of packets: 2000000 (1146.43MB)
AvgRate: 582.27Kbps stddev:2366.02K

IP flow (unique src/dst pair) Information

# of flows: 10468 (avg. 191.06 pkts/flow)
Top 10 big flow size (bytes/total in %):
81.3% 6.9% 3.7% 1.1% 0.5% 0.4% 0.3% 0.2% 0.2% 0.1%

IP address Information

# of IPv6 addresses: 4874
Top 10 bandwidth usage (bytes/total in %):
85.0% 85.0% 8.1% 8.0% 1.7% 0.5% 0.5% 0.5% 0.4% 0.4%

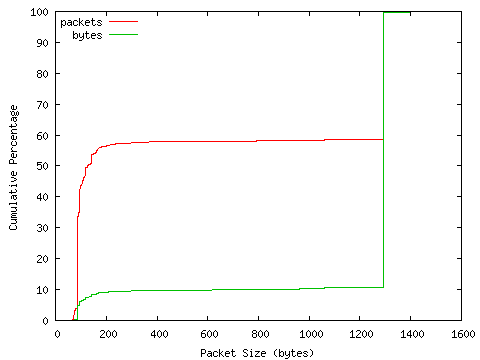

Packet Size Distribution (including MAC headers)

detailed numbers

 [   32-   63]:         56
 [   64-  127]:    1002324
 [  128-  255]:     142548
 [  256-  511]:      14659
 [  512- 1023]:       5785
 [ 1024- 2047]:     834628

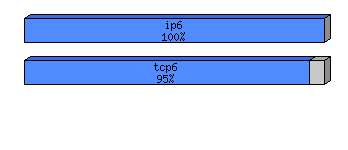

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)       1202122885 (100.00%)    601.06
 ip6            2000000 (100.00%)       1202122885 (100.00%)    601.06
  tcp6          1554598 ( 77.73%)       1143175171 ( 95.10%)    735.35
   http(s)         3619 (  0.18%)          3661652 (  0.30%)   1011.79
   http(c)         1656 (  0.08%)           202979 (  0.02%)    122.57
   squid              2 (  0.00%)              168 (  0.00%)     84.00
   smtp           10892 (  0.54%)          3084074 (  0.26%)    283.15
   nntp             159 (  0.01%)            17939 (  0.00%)    112.82
   ftp             9110 (  0.46%)          1060951 (  0.09%)    116.46
   pop3               3 (  0.00%)              282 (  0.00%)     94.00
   ssh            24975 (  1.25%)          4047625 (  0.34%)    162.07
   dns               20 (  0.00%)             2644 (  0.00%)    132.20
   bgp            22379 (  1.12%)          2185521 (  0.18%)     97.66
   other        1481783 ( 74.09%)       1128911336 ( 93.91%)    761.86
  udp6           118016 (  5.90%)         18290168 (  1.52%)    154.98
   dns           110362 (  5.52%)         17184866 (  1.43%)    155.71
   other           7654 (  0.38%)          1105302 (  0.09%)    144.41
  icmp6          284732 ( 14.24%)         35057901 (  2.92%)    123.13
  ospf6           38296 (  1.91%)          4970048 (  0.41%)    129.78
  ip4                10 (  0.00%)             1184 (  0.00%)    118.40
  ip6              2493 (  0.12%)           418733 (  0.03%)    167.96
  pim6             1653 (  0.08%)           166402 (  0.01%)    100.67
  other6            202 (  0.01%)            43278 (  0.00%)    214.25

tcpdump file: 200603190900.dump.gz (28.31 MB)
