Traffic Trace Info


DumpFile: 200703261800.dump
FileSize: 172.75MB
Id: 200703261800
StartTime: Mon Mar 26 18:00:01 2007
EndTime: Mon Mar 26 18:59:18 2007
TotalTime: 3557.85 seconds
TotalCapSize: 141.82MB CapLen: 128 bytes
# of packets: 2000000 (1548.33MB)
AvgRate: 3.65Mbps stddev:0.55M

IP flow (unique src/dst pair) Information

# of flows: 2889 (avg. 692.28 pkts/flow)
Top 10 big flow size (bytes/total in %):
95.5% 3.1% 0.6% 0.1% 0.1% 0.1% 0.0% 0.0% 0.0% 0.0%

IP address Information

# of IPv6 addresses: 1775
Top 10 bandwidth usage (bytes/total in %):
98.6% 98.6% 0.8% 0.6% 0.1% 0.1% 0.1% 0.1% 0.0% 0.0%

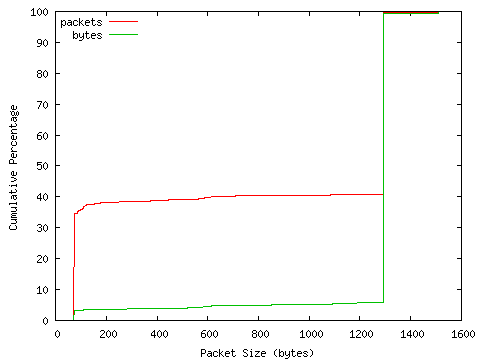

Packet Size Distribution (including MAC headers)

[packet size distribution]
detailed numbers
 [   64-  127]:     748361
 [  128-  255]:      18886
 [  256-  511]:      14274
 [  512- 1023]:      27982
 [ 1024- 2047]:    1190497

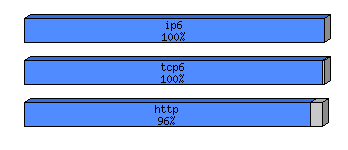

Protocol Breakdown

[protocol breakdown chart]

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total          2000000 (100.00%)       1623545865 (100.00%)    811.77
 ip6            2000000 (100.00%)       1623545865 (100.00%)    811.77
  tcp6          1959125 ( 97.96%)       1618049490 ( 99.66%)    825.90
   http(s)      1226113 ( 61.31%)       1550988621 ( 95.53%)   1264.96
   http(c)       692580 ( 34.63%)         51464560 (  3.17%)     74.31
   squid              2 (  0.00%)              188 (  0.00%)     94.00
   smtp            1407 (  0.07%)           363484 (  0.02%)    258.34
   ftp            13085 (  0.65%)          1818625 (  0.11%)    138.99
   imap             180 (  0.01%)            31764 (  0.00%)    176.47
   ssh              168 (  0.01%)            77167 (  0.00%)    459.33
   dns               28 (  0.00%)             2632 (  0.00%)     94.00
   bgp              700 (  0.03%)            78894 (  0.00%)    112.71
   icecast          345 (  0.02%)            25550 (  0.00%)     74.06
   other          24517 (  1.23%)         13198005 (  0.81%)    538.32
  udp6            28232 (  1.41%)          4028003 (  0.25%)    142.68
   dns            27030 (  1.35%)          3862343 (  0.24%)    142.89
   other           1202 (  0.06%)           165660 (  0.01%)    137.82
  icmp6            8119 (  0.41%)           941724 (  0.06%)    115.99
  ospf6            4118 (  0.21%)           470660 (  0.03%)    114.29
  ip6               286 (  0.01%)            38744 (  0.00%)    135.47
  pim6              118 (  0.01%)            14632 (  0.00%)    124.00
  other6              2 (  0.00%)             2612 (  0.00%)   1306.00


tcpdump file: 200703261800.dump.gz (24.33 MB)
