Traffic Trace Info
DumpFile: 200707051400.dump
FileSize: 2122.10MB
Id: 200707051400
StartTime: Thu Jul 5 14:00:00 2007
EndTime: Thu Jul 5 14:15:01 2007
TotalTime: 900.34 seconds
TotalCapSize: 1657.04MB CapLen: 96 bytes
# of packets: 30469548 (21697.20MB)
AvgRate: 202.17Mbps stddev:28.59M
IP flow (unique src/dst pair) Information
# of flows: 627962 (avg. 48.52 pkts/flow)
Top 10 big flow size (bytes/total in %):
3.0% 2.0% 1.9% 1.9% 1.8% 1.4% 1.4% 1.1% 1.0% 0.9%
IP address Information
# of IPv4 addresses: 336673
Top 10 bandwidth usage (bytes/total in %):
11.2% 7.1% 4.3% 3.8% 3.8% 3.0% 3.0% 2.8% 2.6% 2.5%
# of IPv6 addresses: 1582
Top 10 bandwidth usage (bytes/total in %):
22.3% 18.9% 18.9% 9.3% 9.3% 8.0% 7.2% 3.7% 3.5% 3.5%

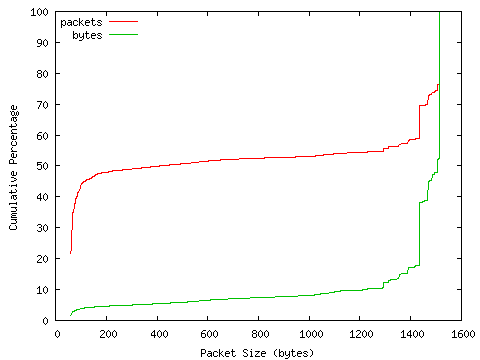

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200707051400.pktlen.png)
detailed numbers
[ 32- 63]: 7059272
[ 64- 127]: 6829418
[ 128- 255]: 928496
[ 256- 511]: 651992
[ 512- 1023]: 748390
[ 1024- 2047]: 14251980

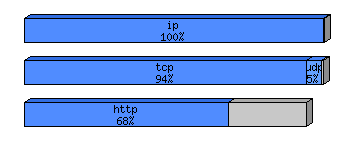

Protocol Breakdown
![[protocol breakdown chart]](200707051400.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 30469548 (100.00%) 22751158565 (100.00%) 746.69
ip 30366977 ( 99.66%) 22731590023 ( 99.91%) 748.56
tcp 26443626 ( 86.79%) 21427051608 ( 94.18%) 810.29
http(s) 11485785 ( 37.70%) 15536679054 ( 68.29%) 1352.69
http(c) 7562841 ( 24.82%) 1019562713 ( 4.48%) 134.81
squid 531469 ( 1.74%) 396015405 ( 1.74%) 745.13
smtp 347212 ( 1.14%) 83973997 ( 0.37%) 241.85
nntp 208 ( 0.00%) 15226 ( 0.00%) 73.20
ftp 116477 ( 0.38%) 9279665 ( 0.04%) 79.67
pop3 22767 ( 0.07%) 10579852 ( 0.05%) 464.70
imap 6103 ( 0.02%) 2583796 ( 0.01%) 423.36
telnet 2345 ( 0.01%) 172835 ( 0.00%) 73.70
ssh 22545 ( 0.07%) 9831914 ( 0.04%) 436.10
dns 5040 ( 0.02%) 2030257 ( 0.01%) 402.83
bgp 185 ( 0.00%) 34972 ( 0.00%) 189.04
napster 84 ( 0.00%) 6484 ( 0.00%) 77.19
realaud 18 ( 0.00%) 1919 ( 0.00%) 106.61
rtsp 663970 ( 2.18%) 178977438 ( 0.79%) 269.56
icecast 56622 ( 0.19%) 40342303 ( 0.18%) 712.48
hotline 5 ( 0.00%) 712 ( 0.00%) 142.40
other 5619947 ( 18.44%) 4136962886 ( 18.18%) 736.12
udp 3039651 ( 9.98%) 1108078090 ( 4.87%) 364.54
dns 1573134 ( 5.16%) 194605972 ( 0.86%) 123.71
realaud 7043 ( 0.02%) 3425048 ( 0.02%) 486.31
halflif 30 ( 0.00%) 2361 ( 0.00%) 78.70
starcra 13 ( 0.00%) 1268 ( 0.00%) 97.54
everque 23 ( 0.00%) 2877 ( 0.00%) 125.09
unreal 11 ( 0.00%) 883 ( 0.00%) 80.27
quake 25 ( 0.00%) 1936 ( 0.00%) 77.44
cuseeme 9 ( 0.00%) 1181 ( 0.00%) 131.22
other 1459319 ( 4.79%) 910006716 ( 4.00%) 623.58
icmp 442654 ( 1.45%) 43479793 ( 0.19%) 98.23
ipip 342 ( 0.00%) 40344 ( 0.00%) 117.96
ipsec 3957 ( 0.01%) 4231190 ( 0.02%) 1069.29
ip6 14820 ( 0.05%) 7310244 ( 0.03%) 493.27
other 421927 ( 1.38%) 141398754 ( 0.62%) 335.13
frag 3260 ( 0.01%) 3251725 ( 0.01%) 997.46
ip6 102571 ( 0.34%) 19568542 ( 0.09%) 190.78
tcp6 53462 ( 0.18%) 11530382 ( 0.05%) 215.67
http(s) 252 ( 0.00%) 185699 ( 0.00%) 736.90
http(c) 40786 ( 0.13%) 4404097 ( 0.02%) 107.98
smtp 1328 ( 0.00%) 763456 ( 0.00%) 574.89
nntp 2721 ( 0.01%) 1815879 ( 0.01%) 667.36
ssh 76 ( 0.00%) 11838 ( 0.00%) 155.76
dns 27 ( 0.00%) 3246 ( 0.00%) 120.22
bgp 90 ( 0.00%) 8550 ( 0.00%) 95.00
other 8182 ( 0.03%) 4337617 ( 0.02%) 530.14
udp6 36149 ( 0.12%) 6354453 ( 0.03%) 175.79
dns 36036 ( 0.12%) 6342023 ( 0.03%) 175.99
other 113 ( 0.00%) 12430 ( 0.00%) 110.00
icmp6 11216 ( 0.04%) 1444005 ( 0.01%) 128.75
ip6 1711 ( 0.01%) 235083 ( 0.00%) 137.40
pim6 31 ( 0.00%) 4216 ( 0.00%) 136.00
other6 2 ( 0.00%) 403 ( 0.00%) 201.50
tcpdump file: 200707051400.dump.gz (759.11 MB)
