Traffic Trace Info
DumpFile: 200708011400.dump
FileSize: 1536.77MB
Id: 200708011400
StartTime: Wed Aug 1 14:00:01 2007
EndTime: Wed Aug 1 14:15:01 2007
TotalTime: 900.01 seconds
TotalCapSize: 1201.14MB CapLen: 96 bytes
# of packets: 21991337 (14972.81MB)
AvgRate: 139.54Mbps stddev:16.54M
IP flow (unique src/dst pair) Information
# of flows: 873858 (avg. 25.17 pkts/flow)
Top 10 big flow size (bytes/total in %):
2.1% 2.1% 2.1% 2.0% 1.9% 1.3% 1.3% 1.1% 0.8% 0.7%
IP address Information
# of IPv4 addresses: 494700
Top 10 bandwidth usage (bytes/total in %):
19.2% 10.9% 10.2% 2.2% 2.2% 2.1% 2.1% 2.1% 2.1% 2.1%
# of IPv6 addresses: 1705
Top 10 bandwidth usage (bytes/total in %):
64.0% 45.5% 18.5% 8.6% 8.6% 2.2% 1.8% 1.7% 1.7% 1.5%

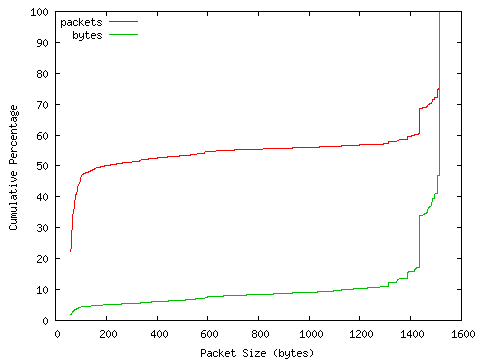

Packet Size Distribution (including MAC headers)
![[packet size distribution]](200708011400.pktlen.png)
detailed numbers
[ 32- 63]: 5237505
[ 64- 127]: 5314733
[ 128- 255]: 635868
[ 256- 511]: 551533
[ 512- 1023]: 589650
[ 1024- 2047]: 9662048
Protocol Breakdown

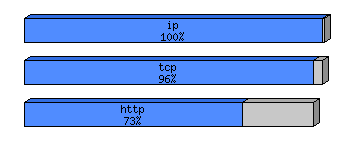

![[protocol breakdown chart]](200708011400.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 21991337 (100.00%) 15700126481 (100.00%) 713.92
ip 21822515 ( 99.23%) 15641947231 ( 99.63%) 716.78
tcp 18829991 ( 85.62%) 15136635063 ( 96.41%) 803.86
http(s) 8362114 ( 38.02%) 11428480858 ( 72.79%) 1366.70
http(c) 6099381 ( 27.74%) 694990030 ( 4.43%) 113.94
squid 643869 ( 2.93%) 515379162 ( 3.28%) 800.44
smtp 455709 ( 2.07%) 159649563 ( 1.02%) 350.33
nntp 12 ( 0.00%) 750 ( 0.00%) 62.50
ftp 5280 ( 0.02%) 587980 ( 0.00%) 111.36
pop3 17826 ( 0.08%) 8197404 ( 0.05%) 459.86
imap 5528 ( 0.03%) 1849828 ( 0.01%) 334.63
telnet 214 ( 0.00%) 30388 ( 0.00%) 142.00
ssh 101843 ( 0.46%) 49468455 ( 0.32%) 485.73
dns 6340 ( 0.03%) 2200213 ( 0.01%) 347.04
bgp 263 ( 0.00%) 91102 ( 0.00%) 346.40
realaud 34 ( 0.00%) 4429 ( 0.00%) 130.26
rtsp 130931 ( 0.60%) 14390286 ( 0.09%) 109.91
icecast 51450 ( 0.23%) 34644692 ( 0.22%) 673.37
other 2949189 ( 13.41%) 2226669443 ( 14.18%) 755.01
udp 2455601 ( 11.17%) 422077805 ( 2.69%) 171.88
dns 1613804 ( 7.34%) 206776854 ( 1.32%) 128.13
realaud 108 ( 0.00%) 14398 ( 0.00%) 133.31
halflif 29 ( 0.00%) 3115 ( 0.00%) 107.41
starcra 34 ( 0.00%) 4806 ( 0.00%) 141.35
everque 142 ( 0.00%) 21900 ( 0.00%) 154.23
unreal 62 ( 0.00%) 7339 ( 0.00%) 118.37
quake 22 ( 0.00%) 2324 ( 0.00%) 105.64
cuseeme 12 ( 0.00%) 1458 ( 0.00%) 121.50
other 840780 ( 3.82%) 214432104 ( 1.37%) 255.04
icmp 289345 ( 1.32%) 29434422 ( 0.19%) 101.73
ipip 334 ( 0.00%) 40352 ( 0.00%) 120.81
ipsec 180 ( 0.00%) 19800 ( 0.00%) 110.00
ip6 7468 ( 0.03%) 3990083 ( 0.03%) 534.29
other 239596 ( 1.09%) 49749706 ( 0.32%) 207.64
frag 10107 ( 0.05%) 10047681 ( 0.06%) 994.13
ip6 168820 ( 0.77%) 58179130 ( 0.37%) 344.62
tcp6 106365 ( 0.48%) 47547185 ( 0.30%) 447.02
http(s) 9202 ( 0.04%) 12176244 ( 0.08%) 1323.22
http(c) 13103 ( 0.06%) 1429247 ( 0.01%) 109.08
smtp 547 ( 0.00%) 181034 ( 0.00%) 330.96
nntp 59006 ( 0.27%) 5607603 ( 0.04%) 95.03
ftp 34 ( 0.00%) 4918 ( 0.00%) 144.65
pop3 75 ( 0.00%) 8922 ( 0.00%) 118.96
ssh 66 ( 0.00%) 10722 ( 0.00%) 162.45
dns 12 ( 0.00%) 1122 ( 0.00%) 93.50
bgp 96 ( 0.00%) 9875 ( 0.00%) 102.86
other 24224 ( 0.11%) 28117498 ( 0.18%) 1160.73
udp6 51113 ( 0.23%) 9127057 ( 0.06%) 178.57
dns 51056 ( 0.23%) 9119872 ( 0.06%) 178.62
other 57 ( 0.00%) 7185 ( 0.00%) 126.05
icmp6 11067 ( 0.05%) 1462748 ( 0.01%) 132.17
ip6 217 ( 0.00%) 32002 ( 0.00%) 147.47
pim6 54 ( 0.00%) 6384 ( 0.00%) 118.22
other6 4 ( 0.00%) 3754 ( 0.00%) 938.50
tcpdump file: 200708011400.dump.gz (582.68 MB)
