Traffic Trace Info
DumpFile: 201004161400.dump
FileSize: 2331.39MB
Id: 201004161400
StartTime: Fri Apr 16 14:00:00 2010
EndTime: Fri Apr 16 14:15:01 2010
TotalTime: 900.24 seconds
TotalCapSize: 1829.38MB CapLen: 96 bytes
# of packets: 32899087 (19353.41MB)
AvgRate: 180.34Mbps stddev:14.32M
IP flow (unique src/dst pair) Information
# of flows: 1110731 (avg. 29.62 pkts/flow)
Top 10 big flow size (bytes/total in %):
2.0% 1.6% 1.1% 0.9% 0.9% 0.8% 0.8% 0.6% 0.6% 0.6%
IP address Information
# of IPv4 addresses: 622664
Top 10 bandwidth usage (bytes/total in %):
15.7% 11.7% 5.2% 3.2% 3.1% 3.1% 3.0% 2.6% 2.1% 2.1%
# of IPv6 addresses: 1083
Top 10 bandwidth usage (bytes/total in %):
19.9% 10.9% 8.5% 6.4% 5.5% 5.3% 5.1% 4.5% 3.6% 3.1%

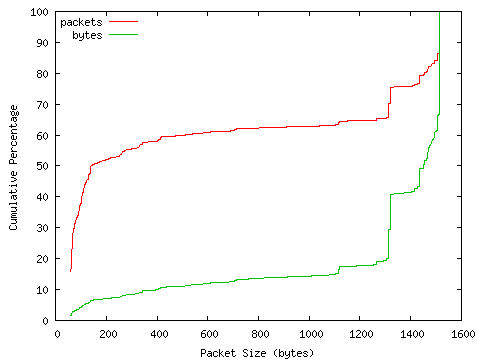

Packet Size Distribution (including MAC headers)
![[packet size distribution]](201004161400.pktlen.png)
detailed numbers
[ 32- 63]: 5771052
[ 64- 127]: 9211987
[ 128- 255]: 2677032
[ 256- 511]: 2053976
[ 512- 1023]: 977923
[ 1024- 2047]: 12207117

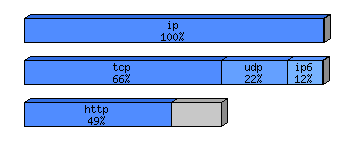

Protocol Breakdown
![[protocol breakdown chart]](201004161400.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 32899087 (100.00%) 20293519801 (100.00%) 616.84
ip 32843092 ( 99.83%) 20284161855 ( 99.95%) 617.61
tcp 19502932 ( 59.28%) 13389383713 ( 65.98%) 686.53
http(s) 7533096 ( 22.90%) 10002363816 ( 49.29%) 1327.79
http(c) 6420429 ( 19.52%) 820290218 ( 4.04%) 127.76
squid 283534 ( 0.86%) 71737148 ( 0.35%) 253.01
smtp 367925 ( 1.12%) 150812048 ( 0.74%) 409.90
ftp 26472 ( 0.08%) 2880388 ( 0.01%) 108.81
pop3 20604 ( 0.06%) 9481168 ( 0.05%) 460.16
imap 4094 ( 0.01%) 1388389 ( 0.01%) 339.13
telnet 432 ( 0.00%) 64228 ( 0.00%) 148.68
ssh 594089 ( 1.81%) 82818951 ( 0.41%) 139.40
dns 53302 ( 0.16%) 3676876 ( 0.02%) 68.98
bgp 162 ( 0.00%) 65806 ( 0.00%) 406.21
napster 114 ( 0.00%) 8943 ( 0.00%) 78.45
realaud 267 ( 0.00%) 31926 ( 0.00%) 119.57
rtsp 297276 ( 0.90%) 104576608 ( 0.52%) 351.78
icecast 28005 ( 0.09%) 9026158 ( 0.04%) 322.31
hotline 76 ( 0.00%) 86279 ( 0.00%) 1135.25
other 3873052 ( 11.77%) 2130074583 ( 10.50%) 549.97
udp 8945059 ( 27.19%) 4405558023 ( 21.71%) 492.51
dns 952355 ( 2.89%) 174498252 ( 0.86%) 183.23
realaud 31 ( 0.00%) 3839 ( 0.00%) 123.84
halflif 78 ( 0.00%) 8826 ( 0.00%) 113.15
starcra 304 ( 0.00%) 34053 ( 0.00%) 112.02
everque 746 ( 0.00%) 148729 ( 0.00%) 199.37
unreal 64 ( 0.00%) 9069 ( 0.00%) 141.70
quake 27 ( 0.00%) 2589 ( 0.00%) 95.89
cuseeme 27 ( 0.00%) 3495 ( 0.00%) 129.44
other 7989619 ( 24.29%) 4230511748 ( 20.85%) 529.50
icmp 639745 ( 1.94%) 100114956 ( 0.49%) 156.49
ipip 347 ( 0.00%) 41614 ( 0.00%) 119.93
ipsec 2261 ( 0.01%) 1207646 ( 0.01%) 534.12
ip6 3745045 ( 11.38%) 2386851602 ( 11.76%) 637.34
other 7703 ( 0.02%) 1004301 ( 0.00%) 130.38
frag 4482 ( 0.01%) 3825685 ( 0.02%) 853.57
ip6 55995 ( 0.17%) 9357946 ( 0.05%) 167.12
tcp6 19937 ( 0.06%) 2513899 ( 0.01%) 126.09
http(s) 156 ( 0.00%) 157911 ( 0.00%) 1012.25
http(c) 3901 ( 0.01%) 352814 ( 0.00%) 90.44
smtp 382 ( 0.00%) 159165 ( 0.00%) 416.66
ftp 4154 ( 0.01%) 426474 ( 0.00%) 102.67
imap 379 ( 0.00%) 44604 ( 0.00%) 117.69
ssh 3628 ( 0.01%) 343712 ( 0.00%) 94.74
dns 65 ( 0.00%) 19192 ( 0.00%) 295.26
bgp 114 ( 0.00%) 14815 ( 0.00%) 129.96
hotline 4 ( 0.00%) 356 ( 0.00%) 89.00
other 7154 ( 0.02%) 994856 ( 0.00%) 139.06
udp6 29764 ( 0.09%) 6021347 ( 0.03%) 202.30
dns 29546 ( 0.09%) 5987746 ( 0.03%) 202.66
other 218 ( 0.00%) 33601 ( 0.00%) 154.13
icmp6 6195 ( 0.02%) 758746 ( 0.00%) 122.48
pim6 31 ( 0.00%) 4216 ( 0.00%) 136.00
other6 68 ( 0.00%) 59738 ( 0.00%) 878.50
tcpdump file: 201004161400.dump.gz (848.11 MB)
