Traffic Trace Info
DumpFile: 201207311400.dump
FileSize: 3719.86MB
Id: 201207311400
StartTime: Tue Jul 31 14:00:01 2012
EndTime: Tue Jul 31 14:15:01 2012
TotalTime: 899.65 seconds
TotalCapSize: -1228.38MB CapLen: 96 bytes
# of packets: 55851904 (32812.01MB)
AvgRate: 305.89Mbps stddev:52.99M
IP flow (unique src/dst pair) Information
# of flows: 11274853 (avg. 4.95 pkts/flow)
Top 10 big flow size (bytes/total in %):
12.2% 3.0% 2.3% 1.9% 1.3% 1.3% 1.1% 0.9% 0.7% 0.7%
IP address Information
# of IPv4 addresses: 8818013
Top 10 bandwidth usage (bytes/total in %):
19.4% 18.1% 12.6% 4.5% 4.5% 3.0% 2.9% 2.9% 2.8% 2.8%
# of IPv6 addresses: 8841
Top 10 bandwidth usage (bytes/total in %):
23.5% 13.8% 8.4% 5.3% 3.8% 3.7% 3.2% 3.1% 3.0% 2.7%

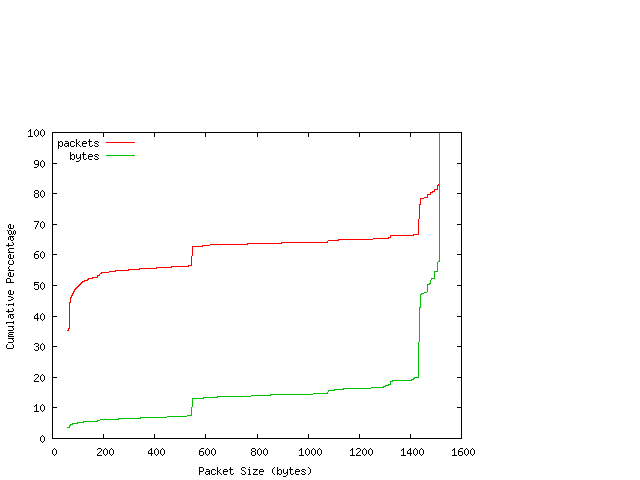

Packet Size Distribution (including MAC headers)
![[packet size distribution]](201207311400.pktlen.png)
detailed numbers
[ 32- 63]: 20057601
[ 64- 127]: 8711684
[ 128- 255]: 1823098
[ 256- 511]: 781661
[ 512- 1023]: 4403324
[ 1024- 2047]: 20074536

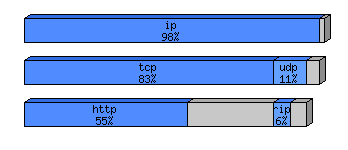

Protocol Breakdown
![[protocol breakdown chart]](201207311400.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 55851904 (100.00%) 34405888763 (100.00%) 616.02
ip 55155083 ( 98.75%) 33838474026 ( 98.35%) 613.52
tcp 31101685 ( 55.69%) 28620086976 ( 83.18%) 920.21
http(s) 14075098 ( 25.20%) 18765330480 ( 54.54%) 1333.23
http(c) 7606866 ( 13.62%) 1437981007 ( 4.18%) 189.04
squid 30847 ( 0.06%) 13854948 ( 0.04%) 449.15
smtp 62002 ( 0.11%) 25275916 ( 0.07%) 407.66
ftp 4406 ( 0.01%) 368015 ( 0.00%) 83.53
pop3 7977 ( 0.01%) 3204118 ( 0.01%) 401.67
imap 3921 ( 0.01%) 1104024 ( 0.00%) 281.57
telnet 6517 ( 0.01%) 490806 ( 0.00%) 75.31
ssh 1255548 ( 2.25%) 743703716 ( 2.16%) 592.33
dns 2775 ( 0.00%) 286200 ( 0.00%) 103.14
bgp 551 ( 0.00%) 140732 ( 0.00%) 255.41
napster 66 ( 0.00%) 4350 ( 0.00%) 65.91
realaud 6 ( 0.00%) 1099 ( 0.00%) 183.17
rtsp 5693 ( 0.01%) 7643405 ( 0.02%) 1342.60
icecast 16229 ( 0.03%) 15304747 ( 0.04%) 943.05
hotline 70 ( 0.00%) 4988 ( 0.00%) 71.26
other 8023113 ( 14.36%) 7605388425 ( 22.10%) 947.93
udp 7964532 ( 14.26%) 3725038207 ( 10.83%) 467.70
dns 793312 ( 1.42%) 371180224 ( 1.08%) 467.89
rip 4061515 ( 7.27%) 1971682470 ( 5.73%) 485.45
realaud 19 ( 0.00%) 2097 ( 0.00%) 110.37
halflif 69 ( 0.00%) 10538 ( 0.00%) 152.72
starcra 86 ( 0.00%) 12944 ( 0.00%) 150.51
everque 349 ( 0.00%) 49213 ( 0.00%) 141.01
unreal 51 ( 0.00%) 5798 ( 0.00%) 113.69
quake 39 ( 0.00%) 3691 ( 0.00%) 94.64
cuseeme 5 ( 0.00%) 464 ( 0.00%) 92.80
other 3101999 ( 5.55%) 1381464235 ( 4.02%) 445.35
icmp 15067726 ( 26.98%) 975358927 ( 2.83%) 64.73
ipip 184 ( 0.00%) 19160 ( 0.00%) 104.13
ipsec 1661 ( 0.00%) 362558 ( 0.00%) 218.28
ip6 958872 ( 1.72%) 495943896 ( 1.44%) 517.22
pim 89 ( 0.00%) 5340 ( 0.00%) 60.00
other 60334 ( 0.11%) 21658962 ( 0.06%) 358.98
frag 238152 ( 0.43%) 258195241 ( 0.75%) 1084.16
ip6 696821 ( 1.25%) 567414737 ( 1.65%) 814.29
tcp6 606251 ( 1.09%) 542448034 ( 1.58%) 894.76
http(s) 441123 ( 0.79%) 482560615 ( 1.40%) 1093.94
http(c) 120614 ( 0.22%) 11206071 ( 0.03%) 92.91
squid 6 ( 0.00%) 1512 ( 0.00%) 252.00
smtp 34 ( 0.00%) 20762 ( 0.00%) 610.65
ftp 189 ( 0.00%) 19876 ( 0.00%) 105.16
ssh 120 ( 0.00%) 17536 ( 0.00%) 146.13
dns 125 ( 0.00%) 43720 ( 0.00%) 349.76
bgp 91 ( 0.00%) 29096 ( 0.00%) 319.74
other 43949 ( 0.08%) 48548846 ( 0.14%) 1104.66
udp6 65097 ( 0.12%) 20524337 ( 0.06%) 315.29
dns 61757 ( 0.11%) 19892649 ( 0.06%) 322.11
starcra 1 ( 0.00%) 113 ( 0.00%) 113.00
everque 1 ( 0.00%) 105 ( 0.00%) 105.00
quake 2 ( 0.00%) 224 ( 0.00%) 112.00
cuseeme 1 ( 0.00%) 107 ( 0.00%) 107.00
other 3335 ( 0.01%) 631139 ( 0.00%) 189.25
icmp6 24264 ( 0.04%) 3382102 ( 0.01%) 139.39
ip6 86 ( 0.00%) 11648 ( 0.00%) 135.44
pim6 31 ( 0.00%) 4216 ( 0.00%) 136.00
other6 1092 ( 0.00%) 1044400 ( 0.00%) 956.41
tcpdump file: 201207311400.dump.gz (1203.30 MB)
