Traffic Trace Info
DumpFile: 201208141400.dump
FileSize: 3137.54MB
Id: 201208141400
StartTime: Tue Aug 14 14:00:00 2012
EndTime: Tue Aug 14 14:15:00 2012
TotalTime: 899.58 seconds
TotalCapSize: -1675.91MB CapLen: 96 bytes
# of packets: 47018470 (33918.40MB)
AvgRate: 316.30Mbps stddev:55.50M
IP flow (unique src/dst pair) Information
# of flows: 950103 (avg. 49.49 pkts/flow)
Top 10 big flow size (bytes/total in %):
5.3% 2.8% 2.0% 2.0% 1.9% 1.9% 1.7% 1.7% 1.6% 1.4%
IP address Information
# of IPv4 addresses: 615198
Top 10 bandwidth usage (bytes/total in %):
19.0% 16.9% 12.2% 8.2% 6.7% 6.7% 3.6% 2.9% 2.7% 2.7%
# of IPv6 addresses: 7338
Top 10 bandwidth usage (bytes/total in %):
57.8% 55.4% 20.4% 6.5% 6.5% 3.1% 3.1% 2.7% 2.5% 2.1%

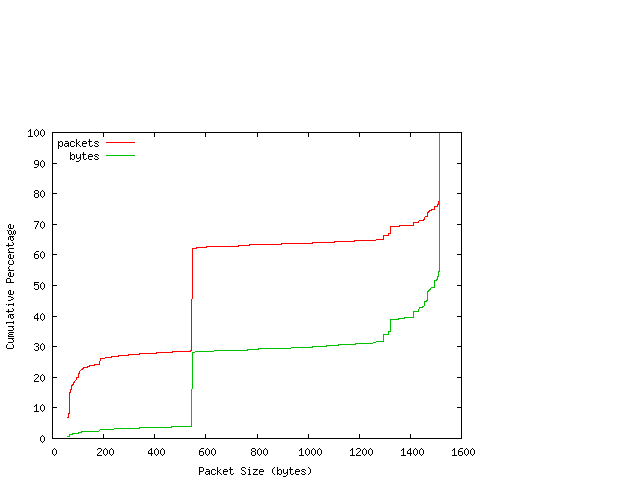

Packet Size Distribution (including MAC headers)
![[packet size distribution]](201208141400.pktlen.png)
detailed numbers
[ 32- 63]: 3820185
[ 64- 127]: 7066012
[ 128- 255]: 1786187
[ 256- 511]: 687206
[ 512- 1023]: 16736406
[ 1024- 2047]: 16922474

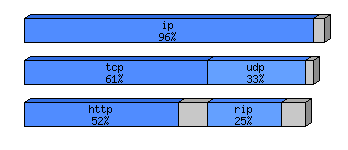

Protocol Breakdown
![[protocol breakdown chart]](201208141400.png)
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 47018470 (100.00%) 35566021886 (100.00%) 756.43
ip 45866683 ( 97.55%) 34269669758 ( 96.36%) 747.16
tcp 22653629 ( 48.18%) 21758073103 ( 61.18%) 960.47
http(s) 13739459 ( 29.22%) 18325685161 ( 51.53%) 1333.80
http(c) 5720367 ( 12.17%) 1088422884 ( 3.06%) 190.27
squid 86996 ( 0.19%) 102459540 ( 0.29%) 1177.75
smtp 90773 ( 0.19%) 11299228 ( 0.03%) 124.48
nntp 1 ( 0.00%) 60 ( 0.00%) 60.00
ftp 13576 ( 0.03%) 1718080 ( 0.00%) 126.55
pop3 7140 ( 0.02%) 6373670 ( 0.02%) 892.67
imap 1425 ( 0.00%) 444640 ( 0.00%) 312.03
telnet 5554 ( 0.01%) 432663 ( 0.00%) 77.90
ssh 60045 ( 0.13%) 50064596 ( 0.14%) 833.78
dns 4137 ( 0.01%) 2087170 ( 0.01%) 504.51
bgp 540 ( 0.00%) 114877 ( 0.00%) 212.74
napster 138 ( 0.00%) 10322 ( 0.00%) 74.80
realaud 385 ( 0.00%) 133696 ( 0.00%) 347.26
icecast 830 ( 0.00%) 89720 ( 0.00%) 108.10
hotline 74 ( 0.00%) 5585 ( 0.00%) 75.47
other 2922189 ( 6.21%) 2168731211 ( 6.10%) 742.16
udp 20921753 ( 44.50%) 11653516860 ( 32.77%) 557.00
dns 427320 ( 0.91%) 99109415 ( 0.28%) 231.93
rip 16594347 ( 35.29%) 8768106984 ( 24.65%) 528.38
realaud 18 ( 0.00%) 1373 ( 0.00%) 76.28
halflif 48 ( 0.00%) 7145 ( 0.00%) 148.85
starcra 74 ( 0.00%) 8247 ( 0.00%) 111.45
everque 244 ( 0.00%) 36069 ( 0.00%) 147.82
unreal 11 ( 0.00%) 1720 ( 0.00%) 156.36
quake 20 ( 0.00%) 2009 ( 0.00%) 100.45
cuseeme 5 ( 0.00%) 404 ( 0.00%) 80.80
other 3899592 ( 8.29%) 2786187420 ( 7.83%) 714.48
icmp 570854 ( 1.21%) 111966631 ( 0.31%) 196.14
ipip 185 ( 0.00%) 19270 ( 0.00%) 104.16
ipsec 3224 ( 0.01%) 1172080 ( 0.00%) 363.55
ip6 1673421 ( 3.56%) 733232433 ( 2.06%) 438.16
pim 90 ( 0.00%) 5400 ( 0.00%) 60.00
other 43527 ( 0.09%) 11683981 ( 0.03%) 268.43
frag 6359 ( 0.01%) 7731193 ( 0.02%) 1215.79
ip6 1151787 ( 2.45%) 1296352128 ( 3.64%) 1125.51
tcp6 1065070 ( 2.27%) 1261253614 ( 3.55%) 1184.20
http(s) 429453 ( 0.91%) 511147813 ( 1.44%) 1190.23
http(c) 40590 ( 0.09%) 4946125 ( 0.01%) 121.86
smtp 393 ( 0.00%) 260966 ( 0.00%) 664.04
ftp 166 ( 0.00%) 17846 ( 0.00%) 107.51
ssh 78 ( 0.00%) 7032 ( 0.00%) 90.15
dns 130 ( 0.00%) 48064 ( 0.00%) 369.72
bgp 220 ( 0.00%) 173662 ( 0.00%) 789.37
other 594040 ( 1.26%) 744652106 ( 2.09%) 1253.54
udp6 65798 ( 0.14%) 31153064 ( 0.09%) 473.47
dns 47309 ( 0.10%) 14159526 ( 0.04%) 299.30
realaud 1 ( 0.00%) 104 ( 0.00%) 104.00
everque 1 ( 0.00%) 108 ( 0.00%) 108.00
quake 1 ( 0.00%) 108 ( 0.00%) 108.00
other 18486 ( 0.04%) 16993218 ( 0.05%) 919.25
icmp6 19840 ( 0.04%) 2988429 ( 0.01%) 150.63
ip6 84 ( 0.00%) 11412 ( 0.00%) 135.86
pim6 31 ( 0.00%) 4216 ( 0.00%) 136.00
other6 964 ( 0.00%) 941393 ( 0.00%) 976.55
tcpdump file: 201208141400.dump.gz (903.48 MB)
