Traffic Trace Info


DumpFile: 201910031400.pcap
FileSize: 9589.34MB
Id: 201910031400
StartTime: Thu Oct 3 14:00:00 2019
EndTime: Thu Oct 3 14:15:00 2019
TotalTime: 900.07 seconds
TotalCapSize: 7511.17MB CapLen: 96 bytes
# of packets: 136195351 (115555.58MB)
AvgRate: 1077.00Mbps stddev:100.81M

Aggregated Flow Summary (using agurim)

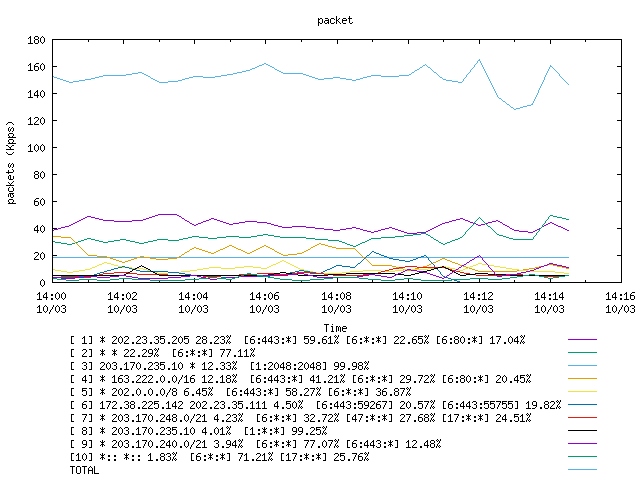

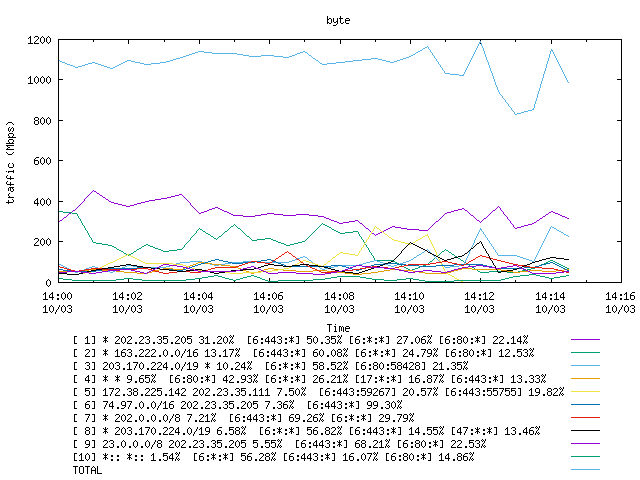

[agurim byte plot] [agurim packets plot]

Packet Size Distribution (including MAC headers)

[packet size distribution]
detailed numbers

Protocol Breakdown

     protocol		packets			bytes		bytes/pkt
------------------------------------------------------------------------
 total        136195351 (100.00%)     121168808915 (100.00%)    889.67
 ip           133703832 ( 98.17%)     119298233678 ( 98.46%)    892.26
  tcp          99175037 ( 72.82%)     112063743913 ( 92.49%)   1129.96
   http        20873102 ( 15.33%)      27384061916 ( 22.60%)   1311.93
   https       62835471 ( 46.14%)      75872557522 ( 62.62%)   1207.48
   smtp          143952 (  0.11%)         43647805 (  0.04%)    303.21
   ftp            63872 (  0.05%)          6713814 (  0.01%)    105.11
   ssh           952968 (  0.70%)        193263618 (  0.16%)    202.80
   dns            85072 (  0.06%)          6581273 (  0.01%)     77.36
   bgp             3405 (  0.00%)           636853 (  0.00%)    187.03
   other       14217195 ( 10.44%)       8556281112 (  7.06%)    601.83
  udp           7335996 (  5.39%)       3372858510 (  2.78%)    459.77
   dns           587910 (  0.43%)        303114416 (  0.25%)    515.58
   https          18582 (  0.01%)         10625211 (  0.01%)    571.80
   other        6729232 (  4.94%)       3059050364 (  2.52%)    454.59
  icmp         23760010 ( 17.45%)       1445588087 (  1.19%)     60.84
  gre           3431996 (  2.52%)       2415960376 (  1.99%)    703.95
  ipsec             398 (  0.00%)            59092 (  0.00%)    148.47
  other             395 (  0.00%)            23700 (  0.00%)     60.00
  frag          1073776 (  0.79%)       1181793784 (  0.98%)   1100.60
 ip6            2491517 (  1.83%)       1870575117 (  1.54%)    750.78
  tcp6          1794106 (  1.32%)       1637831892 (  1.35%)    912.90
   http          362186 (  0.27%)        415080303 (  0.34%)   1146.04
   https         707135 (  0.52%)        767228166 (  0.63%)   1084.98
   smtp             639 (  0.00%)           168897 (  0.00%)    264.31
   ftp             1182 (  0.00%)           125878 (  0.00%)    106.50
   ssh            77999 (  0.06%)         81452324 (  0.07%)   1044.27
   dns            69672 (  0.05%)         18708069 (  0.02%)    268.52
   bgp             1733 (  0.00%)           489765 (  0.00%)    282.61
   other         573560 (  0.42%)        354578490 (  0.29%)    618.21
  udp6           662715 (  0.49%)        228092768 (  0.19%)    344.18
   dns           396906 (  0.29%)        134939006 (  0.11%)    339.98
   https           6708 (  0.00%)          2187281 (  0.00%)    326.07
   other         259101 (  0.19%)         90966481 (  0.08%)    351.09
  icmp6           33691 (  0.02%)          4077057 (  0.00%)    121.01
  ipsec6             60 (  0.00%)            14184 (  0.00%)    236.40
  pim6              436 (  0.00%)            58138 (  0.00%)    133.34
  other6            509 (  0.00%)           501078 (  0.00%)    984.44


tcpdump file: 201910031400.pcap.gz (2986.95 MB)
