Traffic Trace Info
DumpFile: 202110161400.pcap
FileSize: 2480.54MB
Id: 202110161400
StartTime: Sat Oct 16 14:00:00 2021
EndTime: Sat Oct 16 14:14:59 2021
TotalTime: 899.94 seconds
TotalCapSize: 1915.12MB CapLen: 96 bytes
# of packets: 37055497 (15520.87MB)
AvgRate: 144.61Mbps stddev:61.81M
Aggregated Flow Summary (using agurim)

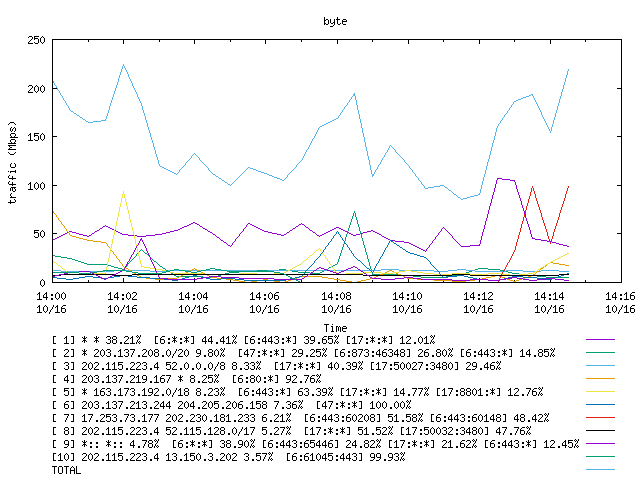

![[agurim byte plot]](202110161400-bytes.png)

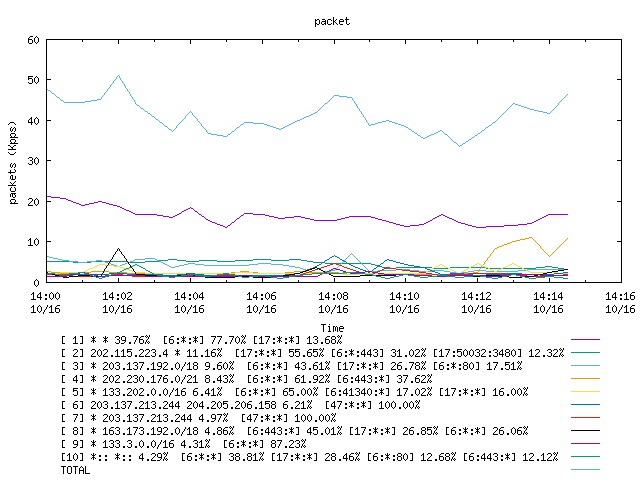

![[agurim packets plot]](202110161400-pkts.png)

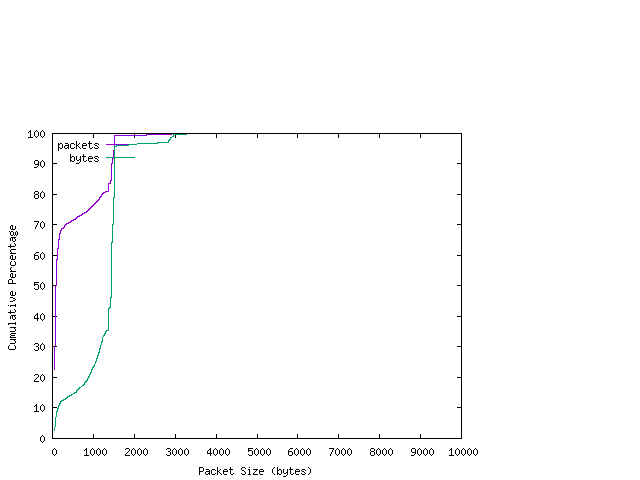

Packet Size Distribution (including MAC headers)
![[packet size distribution]](202110161400.pktlen.png)
detailed numbers
Protocol Breakdown
protocol packets bytes bytes/pkt
------------------------------------------------------------------------
total 37055497 (100.00%) 16274808300 (100.00%) 439.20
ip 35467113 ( 95.71%) 15497666197 ( 95.22%) 436.96
tcp 22698803 ( 61.26%) 10040768943 ( 61.70%) 442.35
http 3641321 ( 9.83%) 2114964705 ( 13.00%) 580.82
https 7335263 ( 19.80%) 6507421587 ( 39.98%) 887.14
smtp 127807 ( 0.34%) 16519727 ( 0.10%) 129.26
ftp 374166 ( 1.01%) 23960106 ( 0.15%) 64.04
ssh 549715 ( 1.48%) 126520262 ( 0.78%) 230.16
dns 33061 ( 0.09%) 12599859 ( 0.08%) 381.11
bgp 41817 ( 0.11%) 4660626 ( 0.03%) 111.45
other 10595652 ( 28.59%) 1234122011 ( 7.58%) 116.47
udp 6927953 ( 18.70%) 3430881692 ( 21.08%) 495.22
dns 584482 ( 1.58%) 89761813 ( 0.55%) 153.57
https 17106 ( 0.05%) 13184684 ( 0.08%) 770.76
other 6322689 ( 17.06%) 3327604305 ( 20.45%) 526.30
icmp 1084775 ( 2.93%) 94925665 ( 0.58%) 87.51
gre 4664156 ( 12.59%) 1821241219 ( 11.19%) 390.48
ipsec 91297 ( 0.25%) 109835922 ( 0.67%) 1203.06
ip6 127 ( 0.00%) 12440 ( 0.00%) 97.95
other 2 ( 0.00%) 316 ( 0.00%) 158.00
frag 11830 ( 0.03%) 6598250 ( 0.04%) 557.76
ip6 1588382 ( 4.29%) 777141983 ( 4.78%) 489.27
tcp6 1017686 ( 2.75%) 593344050 ( 3.65%) 583.03
http 447614 ( 1.21%) 115943726 ( 0.71%) 259.03
https 300654 ( 0.81%) 351987651 ( 2.16%) 1170.74
smtp 824 ( 0.00%) 314034 ( 0.00%) 381.11
ftp 165 ( 0.00%) 15882 ( 0.00%) 96.25
ssh 69045 ( 0.19%) 56941972 ( 0.35%) 824.71
dns 132694 ( 0.36%) 38862577 ( 0.24%) 292.87
bgp 3280 ( 0.01%) 2111981 ( 0.01%) 643.90
other 63410 ( 0.17%) 27166227 ( 0.17%) 428.42
udp6 469568 ( 1.27%) 172857922 ( 1.06%) 368.12
dns 433145 ( 1.17%) 151996609 ( 0.93%) 350.91
https 14216 ( 0.04%) 13699372 ( 0.08%) 963.66
other 22207 ( 0.06%) 7161941 ( 0.04%) 322.51
icmp6 100713 ( 0.27%) 10875603 ( 0.07%) 107.99
pim6 406 ( 0.00%) 55310 ( 0.00%) 136.23
other6 9 ( 0.00%) 9098 ( 0.00%) 1010.89
tcpdump file: 202110161400.pcap.gz (886.23 MB)
